Product Description #gap-2139511169 { padding-top: 30px, } Max. Capacity 4 x 290 ml | 4 x 100 ml #col-1378453016 > .col-inner { margin: 0px 0px -48px 0px, } Max. RPM/RCF 4,000/3,095 | 2,000/984 #col-1768792528 > .col-inner { margin: 0px 0px -84px 0px, } Temperature Control Ambient | +10 C to +90 C (46 H) #col-1146062484 > .col-inner { margin: 0px 0px -38px 0px, } #gap-1280490172 { padding-top: 15px, } INDUSTRIAL | ENVIRONMENTAL #gap-81202774 { padding-top: 30px, } Five Year Warranty Quiet Operation Functional Design Enhanced Safety Technical Specifications #gap-2103985998 { padding-top: 30px, } Model ROTOFIX 46 ROTOFIX 46 H Max. Capacity 4 x 290 ml 4 x 100 ml Max. RPM/RCF 4,000/3,095 2,000/984 Temp. Control Ambient +10 C to +90 C Dims. (HxWxD) mm 345 x 538 x 647 345 x 538 x 647 Dims. (HxWxD) in 14 x 21 x 25 14 x 21 x 25 Weight (kg) 60 60 Weight (lbs) 132 132 Power Supply 120 V 120 V Warranty 5-years 5-years Rotor Type(s) Swing-out, Fixed-angle, Specialty Exchangeable #gap-417331862 { padding-top: 47px, } #image_1591143848 { width: 45%, } #gap-53228627 { padding-top: 10px, } Schedule a Consultation Packages ROTOFIX 46 | 46H Application Packages INDUSTRIAL | ENVIRONMENTAL ROTOFIX 46 / ROTOFIX 46 H ASTM PACKAGE 50 4170-10-0176 | 4170-10-0182 The ROTOFIX 46 ASTM Package 50 comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 50 mL tubes. Many a-la-carte options are also available, contact us for more details. PACKAGE CONTENTS (1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 50 mL Schedule a Consultation #image_1969936536 { width: 45%, } #gap-1644169785 { padding-top: 109px, } TUBE QTY. VOLUME (mL) SIZE (mm) RPM RCF 4 50 45 x 130 &le, 2,000 &le, 984 #row-794095592 > .col > .col-inner { background-color: rgb(255,255,255), } ROTOFIX 46 / ROTOFIX 46 H ASTM PACKAGE 100A 4170-10-0173 | 4170-10-0228 The ROTOFIX 46 ASTM Package 100A comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details. PACKAGE CONTENTS (1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL #gap-1365578144 { padding-top: 22px, } Schedule a Consultation #image_892794317 { width: 45%, } #gap-677867357 { padding-top: 132px, } TUBE QTY. VOLUME (mL) SIZE (mm) RPM RCF 4 100 58 x 161 &le, 2,000 &le, 984 #row-837207481 > .col > .col-inner { background-color: rgb(255,255,255), } ROTOFIX 46 / ROTOFIX 46 H ASTM PACKAGE 100B 4170-10-0174 | 4170-10-0180 The ROTOFIX 46 ASTM Package 100B comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details. PACKAGE CONTENTS (1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL #gap-1875346195 { padding-top: 7px, } Schedule a Consultation #image_1480304710 { width: 45%, } #gap-327985663 { padding-top: 115px, } TUBE QTY. VOLUME (mL) SIZE (mm) RPM RCF 4 100 44 x 168 &le, 2,000 &le, 961 #row-922358127 > .col > .col-inner { background-color: rgb(255,255,255), } ROTOFIX 46 / ROTOFIX 46 H ASTM PACKAGE 100C 4170-10-0227 | 4170-10-0181 The ROTOFIX 46 ASTM Package 100C comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details. PACKAGE CONTENTS (1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL Schedule a Consultation #image_582170160 { width: 45%, } #gap-634571124 { padding-top: 108px, } #gap-1022160760 { padding-top: 2px, } TUBE QTY. VOLUME (mL) SIZE (mm) RPM RCF 4 100 37 x 200 &le, 2,000 &le, 961 #row-194684061 > .col > .col-inner { background-color: rgb(255,255,255), } ROTOFIX 46 / ROTOFIX 46 H ASTM PACKAGE 100D 4170-10-0229 | 4170-10-0230 The ROTOFIX 46 ASTM Package 100D comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details. PACKAGE CONTENTS (1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL Schedule a Consultation #image_983182012 { width: 45%, } #gap-1849519351 { padding-top: 110px, } TUBE QTY. VOLUME (mL) SIZE (mm) RPM RCF 4 100 45 x 165 &le, 2,000 &le, 961 #row-962376736 > .col > .col-inner { background-color: rgb(255,255,255), } ROTOFIX 46 / ROTOFIX 46 H CHROME BATH PACKAGE 4170-10-0178 | 4170-10-0184 The ROTOFIX 46 Chrome Bath Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor and buckets. Many a-la-carte options are also available, contact us for more details. PACKAGE CONTENTS (1) Centrifuge, (1) Horizontal Rotor, (6) Buckets Schedule a Consultation #image_1143315906 { width: 45%, } #gap-226746768 { padding-top: 54px, } TUBE QTY. VOLUME (mL) SIZE (mm) RPM RCF 6 30 24 x 151 &le, 2,000 &le, 917 #row-2118345136 > .col > .col-inner { background-color: rgb(255,255,255), } ROTOFIX 46 / ROTOFIX 46 H SCHLENK PACKAGE 4170-10-0186 | 4170-10-0185 The ROTOFIX 46 Schlenk Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters. Many a-la-carte options are also available, contact us for more details. PACKAGE CONTENTS (1) Centrifuge, (1) Horizontal Rotor, (6) Adapters Schedule a Consultation #image_1639871627 { width: 45%, } #gap-1943618689 { padding-top: 72px, } TUBE QTY. VOLUME (mL) SIZE (mm) RPM RCF 6 25 24 x 146.5 &le, 2,000 &le, 783 6 50 38 x 146.5 &le, 2,000 &le, 805 #row-674539376 > .col > .col-inner { background-color: rgb(255,255,255), } ROTOFIX 46 / ROTOFIX 46 H BABCOCK PACKAGE 4170-10-0177 | 4170-10-0183 The ROTOFIX 46 Babcock Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets, adapters and inserts. Many a-la-carte options are also available, contact us for more details. PACKAGE CONTENTS (1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters, (4) Inserts Schedule a Consultation #image_783128663 { width: 45%, } #gap-897685837 { padding-top: 84px, } TUBE QTY. VOLUME (mL) SIZE (mm) RPM RCF 4 165 (height) &le, 934 &le, 215 #row-816172458 > .col > .col-inner { background-color: rgb(255,255,255), }
Технические характеристики
Technical Specifications
#gap-1614184554 { padding-top: 30px, }
| Model | ROTOFIX 46 | ROTOFIX 46 H |
| Max. Capacity | 4 x 290 ml | 4 x 100 ml |
| Max. RPM/RCF | 4,000/3,095 | 2,000/984 |
| Temp. Control | Ambient | +10 °C to +90 °C |
| Dims. (HxWxD) mm | 345 x 538 x 647 | 345 x 538 x 647 |
| Dims. (HxWxD) in | 14 x 21 x 25 | 14 x 21 x 25 |
| Weight (kg) | 60 | 60 |
| Weight (lbs) | 132 | 132 |
| Power Supply | 120 V | 120 V |
| Warranty | 5-years | 5-years |
| Rotor Type(s) | Swing-out, Fixed-angle, Specialty | Exchangeable |
#gap-814077698 { padding-top: 60px, } #image_1365896079 { width: 45%, } #gap-905546004 { padding-top: 10px, } Schedule a Consultation
Packages
#gap-1544509188 { padding-top: 30px, }
ROTOFIX 46 | 46H Application Packages INDUSTRIAL | ENVIRONMENTAL

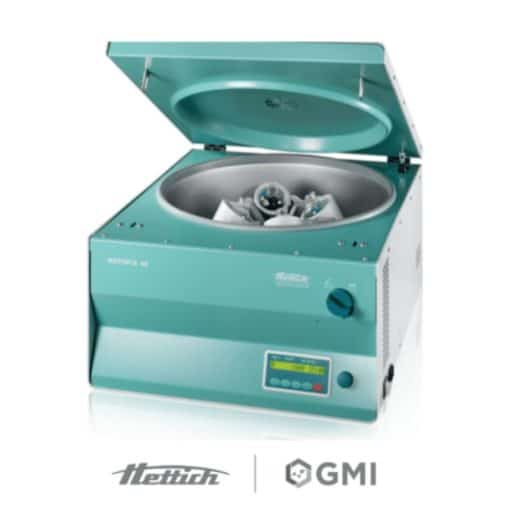

ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE — 50
4170-10-0176 | 4170-10-0182
The ROTOFIX 46 ASTM Package 50 comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 50 mL tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 50 mL
Schedule a Consultation #image_1217302724 { width: 45%, } #gap-991471479 { padding-top: 109px, }
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 50 | 45 x 130 | ≤ 2,000 | ≤ 984 |
#row-1168309774 > .col > .col-inner { background-color: rgb(255,255,255), }
ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE — 100A
4170-10-0173 | 4170-10-0228
The ROTOFIX 46 ASTM Package 100A comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL
#gap-796100149 { padding-top: 22px, } Schedule a Consultation #image_921027208 { width: 45%, } #gap-906652562 { padding-top: 132px, }
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 100 | 58 x 161 | ≤ 2,000 | ≤ 984 |
#row-1664030970 > .col > .col-inner { background-color: rgb(255,255,255), }
ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE — 100B
4170-10-0174 | 4170-10-0180
The ROTOFIX 46 ASTM Package 100B comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL
#gap-835598343 { padding-top: 7px, } Schedule a Consultation #image_816419233 { width: 45%, } #gap-1557958068 { padding-top: 115px, }
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 100 | 44 x 168 | ≤ 2,000 | ≤ 961 |
#row-1074027685 > .col > .col-inner { background-color: rgb(255,255,255), }
ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE — 100C
4170-10-0227 | 4170-10-0181
The ROTOFIX 46 ASTM Package 100C comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL
Schedule a Consultation #image_236845114 { width: 45%, } #gap-1783700817 { padding-top: 108px, } #gap-286150551 { padding-top: 2px, }
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 100 | 37 x 200 | ≤ 2,000 | ≤ 961 |
#row-431778221 > .col > .col-inner { background-color: rgb(255,255,255), }
ROTOFIX 46 / ROTOFIX 46 H
ASTM PACKAGE — 100D
4170-10-0229 | 4170-10-0230
The ROTOFIX 46 ASTM Package 100D comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters for 100 mL tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 100 mL
Schedule a Consultation #image_1718245320 { width: 45%, } #gap-2122900582 { padding-top: 110px, }
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 100 | 45 x 165 | ≤ 2,000 | ≤ 961 |
#row-1404844678 > .col > .col-inner { background-color: rgb(255,255,255), }
ROTOFIX 46 / ROTOFIX 46 H
CHROME BATH PACKAGE
4170-10-0178 | 4170-10-0184
The ROTOFIX 46 Chrome Bath Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor and buckets. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets
Schedule a Consultation #image_297616241 { width: 45%, } #gap-148527300 { padding-top: 54px, }
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 30 | 24 x 151 | ≤ 2,000 | ≤ 917 |
#row-1923122771 > .col > .col-inner { background-color: rgb(255,255,255), }
ROTOFIX 46 / ROTOFIX 46 H
SCHLENK PACKAGE
4170-10-0186 | 4170-10-0185
The ROTOFIX 46 Schlenk Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets and adapters. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (6) Adapters
Schedule a Consultation #image_1577360728 { width: 45%, } #gap-1679360451 { padding-top: 72px, }
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 25 | 24 x 146.5 | ≤ 2,000 | ≤ 783 |
| 6 | 50 | 38 x 146.5 | ≤ 2,000 | ≤ 805 |
#row-773328982 > .col > .col-inner { background-color: rgb(255,255,255), }
ROTOFIX 46 / ROTOFIX 46 H
BABCOCK PACKAGE
4170-10-0177 | 4170-10-0183
The ROTOFIX 46 Babcock Package comes complete with everything you need to perform your application. This includes the ROTOFIX 46 or ROTOFIX 46 H centrifuge, swing-out rotor, buckets, adapters and inserts. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters, (4) Inserts
Schedule a Consultation #image_1049381158 { width: 45%, } #gap-806763060 { padding-top: 84px, }
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | — | 165 (height) | ≤ 934 | ≤ 215 |
#row-1776961623 > .col > .col-inner { background-color: rgb(255,255,255), }
Replacement Parts & Accessories
To view available parts for this instrument and instruments like it, click here.
Our parts and accessories inventory is constantly changing. Don’t see what you’re looking for? Give us a call, we’ll be happy to help.
Service
| Service Agreements | Silver | Gold | First Class Ship & Fix | Economy Ship & Fix |
| Preventative Maintenance Visit | 1 Preventative Maintenance Visit per Year | 1 Preventative Maintenance Visit per Year | ||
| Parts Covered | ||||
| Labor Covered | ||||
| Unlimited Remote Tech Support | ||||
| Depot Repair | ||||
| Depot Preventative Maintenance |
