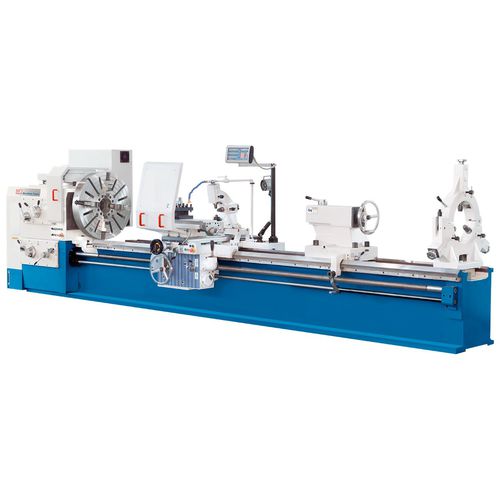

The DL S lathe series is slightly smaller than the DL E Heavy, but is also designed for large turning diameters and workpiece lengths. It is the solution for conventional machining of workpieces up to 5000 mm (197 in.) in length and over 720 mm (28 in.) in diameter. The particularly wide and heavily ribbed machine bed accommodates the heavy workpiece weights. The multi-disc clutch gives the operator control over the dynamics of the spindle start-up and the rapid traverse in the support is particularly effective with large bed lengths. • Extra heavy, wide machine bed with heavy ribbing and one-piece mono-block construction • Induction-hardened and ground guide slots ensure long-term accuracy and minimum wear • Massive headstock with high-precision main spindle on a tapered roller bearing with 100 mm spindle bore for excellent stability under heavy loads • Very quiet operation at maximum spindle speed • Joystick control for X and Z feeds is mounted directly to support • Manual 4-step auxiliary gearbox, premium frequency drive technology combined with main spindle motor ratings up to 7.5 kW allow exact tuning of speed and torque for heavy-duty machining • Rapid feed for X and Z axis allow quick support positioning and less down-time • Adjustable overload clutch in apron protects the feed mechanics from damages and failures • Central, practical controls for feeds and thread leads • The auxiliary gearbox features a wide spectrum of diametric, inch, module, and metric threads • Support and top slide are designed for high cutting forces
Технические характеристики
CharacteristicsControl typemanualSpindle orientationhorizontalNumber of axes3-axisApplicationsheavy-dutyOther characteristicsuniversal, thread, high-precisionDiameter
850 mm, 1,000 mm (33.46 in)
Spindle speed
Max.: 630 rpm (3,958.407 rad.min-1)
Min.: 5 rpm (31.416 rad.min-1)
