Mitutoyo HH-330 Hardmatic Durometer подходит для тестирования резины, полиэфиров, ПВХ, кожи, воска, винила, ацетатов целлюлозы, стеклополистирола и множества других материалов.
Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.

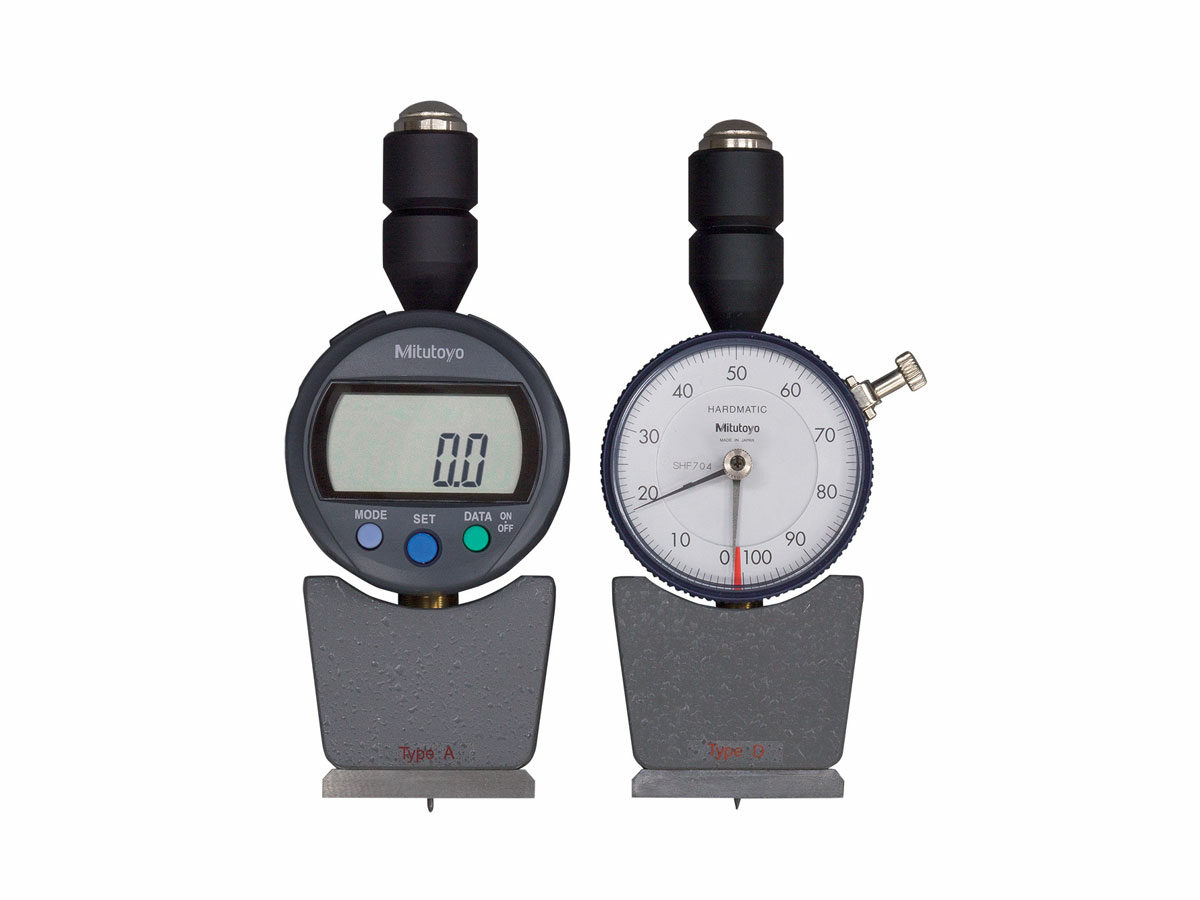

The Mitutoyo Hardmatic digital and analog Durometer provides accurate, repeatable hardness test results on various soft materials from rubber and neoprene to leather and plastics. A data hold function (digital models) and peak retaining hand (on analog models) allows for error-free reading.
Units are available in both Shore A and Shore D scales and will test a wide variety of applications
LCD screen on digital models provides easy-to-read results
Data output function transfers measurements to PC or a printer (via optional RS-232 interface)
Designed in accordance with the ASTM D 2240, ISO868, ISO 7619, DIN 53 505, JIS K 6253, and JIS K 7215 specifications
Order No.:
Product Image:
Model:
Display:
Shore Scale:
Applications:
Resolution:
Range:
Standard:
Pressure Foot:
Spring Force:
Indenter Tip Type:
Indenter Tip Diameter:
Indenter Diameter:
Tip Angle:
Type:
Dimensions:
Mass:
Digital Functions:
Order No.:
811-329-10
—
HH-329
Dial
E
Soft Rubber, Sponge, Felt, Hard Foam
1
10-90
JIS K 6253
44 x 18mm
WE=550+HEmN
Sphere
0.79mm
5mm
—
Compact
56 x 33.5 x 144mm
300g
Peak Retaining Hand
811-330-10
—
HH-330
Digital
E
Soft Rubber, Sponge, Felt, Hard Foam
0.1
10-90
JIS K 6253
44 x 18mm
WE=550+HEmN
Sphere
0.79mm
5mm
—
Compact
60 x 28.5 x 151mm
290g
Data Hold, Zero Setting, SPC Output, Power On-Off, SR44 Battery
811-331-10
—
HH-331
Dial
A
Natural Rubber, Soft Elastomers, etc.
1
10-90
JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215, DIN 53 505
Ø18mm
WA=550+75HDmN
Blunt Taper
0.79mm
1.25mm
35°±0.25°
Long-Leg
56 x 33.5 x 186mm
320g
Peak Retaining Hand
811-332-10
—
HH-332
Digital
A
Natural Rubber, Soft Elastomers, etc.
0.1
10-90
JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215, DIN 53 505
Ø18mm
WA=550+75HDmN
Blunt Taper
0.79mm
1.25mm
35°±0.25°
Long-Leg
60 x 28.5 x 193mm
310g
Data Hold, Zero Setting, SPC Output, Power On-Off, SR44 Battery
811-333-10
—
HH-333
Dial
D
Hard Elastomers, Plastics, Hard Rubber, Ebonite, etc.
1
20-90
JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215, DIN 53 505
Ø18mm
WD=444.5HDmN
Sharp Point
0.1±0.01mm
1.25mm
30°±0.5°
Long-Leg
56 x 33.5 x 186mm
320g
Peak Retaining Hand
811-334-10
—
HH-334
Digital
D
Hard Elastomers, Plastics, Hard Rubber, Ebonite, etc.
0.1
20-90
JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215, DIN 53 505
Ø18mm
WD=444.5HDmN
Sharp Point
0.1±0.01mm
1.25mm
30°±0.5°
Long-Leg
60 x 28.5 x 193mm
310g
Data Hold, Zero Setting, SPC Output, Power On-Off, SR44 Battery
811-335-10
—
HH-335
Dial
A
Natural Rubber, Soft Elastomers, etc.
1
10-90
JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215
44 x 18mm
WA=550+75HDmN
Blunt Taper
0.79mm
1.25mm
35°±0.25°
Compact
56 x 33.5 x 144mm
300g
Peak Retaining Hand
811-335-11
HH-335
Dial
A
Natural Rubber, Soft Elastomers, etc.
1
10-90
JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215, DIN 53 505
Ø18mm
WA=550+75HDmN
Blunt Taper
0.79mm
1.25mm
35°±0.25°
Compact
56 x 33.5 x 144mm
300g
Peak Retaining Hand
811-336-10
—
HH-336
Digital
A
Natural Rubber, Soft Elastomers, etc.
0.1
10-90
JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215
44 x 18mm
WA=550+75HDmN
Blunt Taper
0.79mm
1.25mm
35°±0.25°
Compact
60 x 28.5 x 151mm
290g
Data Hold, Zero Setting, SPC Output, Power On-Off, SR44 Battery
811-336-11
HH-336
Digital
A
Natural Rubber, Soft Elastomers, etc.
0.1
10-90
JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215, DIN 53 505
Ø18mm
WA=550+75HDmN
Blunt Taper
0.79mm
1.25mm
35°±0.25°
Compact
60 x 28.5 x 151mm
290g
Data Hold, Zero Setting, SPC Output, Power On-Off, SR44 Battery
811-337-10
—
HH-337
Dial
D
Hard Elastomers, Plastics, Hard Rubber, Ebonite, etc.
1
20-90
JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215
44 x 18mm
WD=444.5HDmN
Sharp Point
0.1±0.01mm
1.25mm
30°±0.5°
Compact
56 x 33.5 x 144mm
300g
Peak Retaining Hand
811-337-11
—
HH-337
Dial
D
Hard Elastomers, Plastics, Hard Rubber, Ebonite, etc.
1
20-90
JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215, DIN 53 505
Ø18mm
WD=444.5HDmN
Sharp Point
0.1±0.01mm
1.25mm
30°±0.5°
Compact
56 x 33.5 x 144mm
300g
Peak Retaining Hand
811-338-10
—
HH-338
Digital
D
Hard Elastomers, Plastics, Hard Rubber, Ebonite, etc.
0.1
20-90
JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215
44 x 18mm
WD=444.5HDmN
Sharp Point
0.1±0.01mm
1.25mm
30°±0.5°
Compact
60 x 28.5 x 151mm
290g
Data Hold, Zero Setting, SPC Output, Power On-Off, SR44 Battery
811-338-11
—
HH-338
Digital
D
Hard Elastomers, Plastics, Hard Rubber, Ebonite, etc.
0.1
20-90
JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215, DIN 53 505
Ø18mm
WD=444.5HDmN
Sharp Point
0.1±0.01mm
1.25mm
30°±0.5°
Compact
60 x 28.5 x 151mm
290g
Data Hold, Zero Setting, SPC Output, Power On-Off, SR44 Battery
