Features:
- Attenuation Range: 50, 60, or 100 dB
- Resolution: 0.01 dB
- Accuracy of ± 0.1 dB
- Low Insertion Loss
- Series Wavelength Range from 750 to 1700 nm
- GPIB and RS232 Remote Control
- High Power Input of 200 mW, 1000 mW for the HA2
- GPIB/IEEE-488 and RS232-C Interfacing
The HA series, including HA1, HA2, HA9, HA9W, and HA9P attenuators are high-resolution, extended-range, programmable attenuators ideal for testing power meters and for general test and laboratory work.The HA attenuators have a nominal resolution of 0.01 dB and an extended attenuation range of 100 dB. The standard operating wavelength is 1200-1700 nm.
HA attenuators are ideal for use in such demanding applications as multichannel AM systems and high bit-rate digital pulse code modulation (PCM) systems. Discrete internal optical reflections are minimized to better than 60 dB, and cavity effects are virtually eliminated. All HA attenuators are offered with high return loss and low spectral ripple for CATV AM systems.
The inherently linear design of these attenuators, combined with built-in calibration and offset functions, allows the user to match the display to an optical power meter over a wide power range. This feature is useful in tests requiring control of the absolute optical power source for the test device. The built-in beam blocking switch provides fast access from any attenuation setting to infinite attenuation (>, 90 dB).

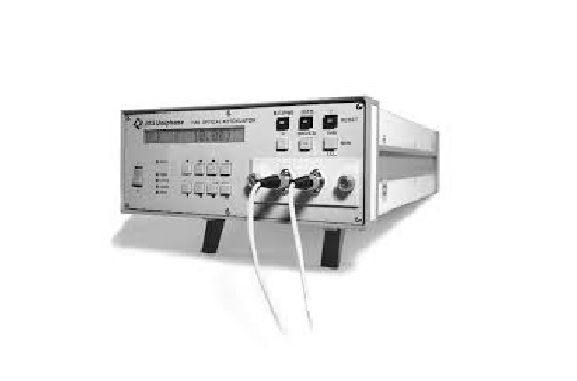

The image is a representation of selection. See specifications for product details. The image may show features that are not available on this specific product.
Технические характеристики
| Manufacturer | JDSU |
|---|---|
| Condition | Used |
