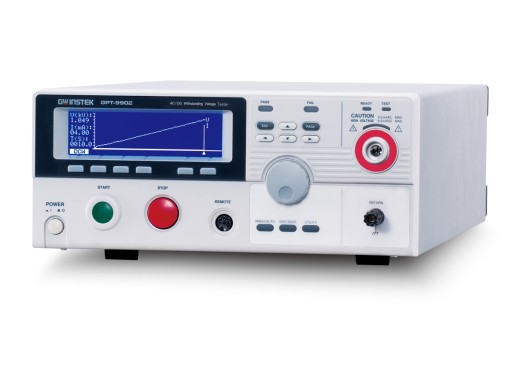

The GPT-9900 series Hi-pot testers from GW Instek are high quality Hi-pot testers. Many functions and a maximum test voltage of 5 kV make these testers a good choice. The devices offer AC/DC withstanding, insulation resistance, ground bond, and arc detection test functionality. The GPT-9900 series is the successor of the GPT-9800 Hi-pot tester and has an increased capacity of 500VA, instead of 200VA on the GPT-9800. The GPT-9900 series also has a Sweep function. The GW Instek GPT-9902A features Hi-pot (AC & DC withstanding) tests.
The testers are designed for ease of use. The high resolution dot LCD display clearly shows which settings have been chosen, and whether the test object meets the set requirements. The devices meet the test requirements of IEC, EN, UL, CSA and CE.
The GPT-9900 can be connected to a computer via USB, RS-232C and optionally GPIB for remote control and data logging.
When working with high voltages such as 5 kV, it is important that no safety problems occur. The testers are designed to minimize the chance of this happening, so when the test is completed or a dangerous situation occurs, they switch off the voltage within 150 s of the output.
The testers offer the possibility to save 100 default settings. Of these, 16 can be performed automatically at the touch of a button. Tests
Hi-pot (DC/AC withstanding)
Aim: To prevent users of a product from receiving an electrical shock, for example due to a failure of the electrical insulation.
Method: By measuring the amount of current leaking between the high voltage part and the ‘safe’ low voltage part while using the product in high-voltage mode, one can measure whether dangerous situations may occur.
Insulation test
Aim: To test the quality of the insulation
Method: Alike to the Hi-pot test, measure how much current is leaking from the high-voltage part to the low-voltage part of the circuit.
Ground Bond
Aim: To test if any switching conductive parts and their ground are well connected.
Method: Check if there is an electric path between conductive metals and the ground of the power supply. The quality of the path is checked
Arc detection
Aim: To expose potential problems such as loose screws or poor insulation.
Method: Measure the duration of the current peak that is caused when a drastic change in the supply voltage occurs. This is usually done during a Hi-pot measurement. Models
The difference between the models in the GPT-9800 series is explained in the table below
ModelACDCIsolationresistanceGroundbondPrice GPT-9901A 2385 €2,385.00 Excl. VAT GPT-9902A 2740 €2,740.00 Excl. VAT GPT-9903A 3375 €3,375.00 Excl. VAT GPT-9904 4990 €4,990.00 Excl. VAT Specifications Output voltage range 0,050 kV ~ 5,000 kV ac Output voltage resolution 2 V Maximum power 500 VA Maximum current 100 mA (0.5kV — 5kV)
10 mA (0.05kV — 0.5kV) Output-voltage waveform Sine, 50/60 Hz (adjustable) Display 240 x 64 dot matrix LED back light LCD Interface USB 2.0, RS232C, (optional GPIB) Weight (without box) 27 Kg Dimensions 587 x 148 x 330 mm (LxWxH) Accessories
All GPT-9900 testers are supplied including:
- Quick start guide
- CTC (Calibration Traceable Certificate)
- USB cable
- Power cord
- Manual on CD(English)
- Interlock key
- Brake terminal male connection
- Test wires
Optionally, a GPIB extension is available.
