last updated : 2019/03/20
| Code | Description | Budget Price | Ship. weight | Ship. vol. | ||
|---|---|---|---|---|---|---|
| EHDWNAILRS01 | NAILS, ROOFING, 75mm (3′), hot galva. + rubber washer, 0.5kg | on request | 0,5kg | 0 | Add | |
| EHDWNAILS025 | NAIL, steel, for concrete, 2.5cm (1′) | CH 0,20 | 1kg | 0,142L | Add | |
| EHDWNAILS050 | NAIL, steel, for concrete, 5cm (2′) | CH 0,80 | 1kg | 1,9901L | Add | |
| EHDWNAILS080 | NAIL, steel, for concrete, 8cm (3′), per kg | on request | 1kg | 0 | Add | |
| EHDWNAILT012 | NAIL, tack nail, 1.2cm (1/2′), iron, per kg | on request | 1kg | 0 | Add | |
| EHDWNAILT025 | NAIL, tack nail, 2.5cm (1′), iron, per kg | on request | 1kg | 0 | Add | |
| EHDWNAILU012 | NAIL, U shape, 1.2cm (1/2′), iron, per kg | on request | 1kg | 0 | Add | |
| EHDWNAILU025 | NAIL, U shape, 2.5cm (1′), iron, per kg | on request | 1kg | 0 | Add | |
| EHDWNAILW025 | NAILS, hot galvanised iron, for wood, 2.5cm (1′) | CH 12,50 | 1kg | 0,4364L | Add | |
| EHDWNAILW040 | NAILS, hot galvanised iron, for wood, 40mm, (1.1/2′) | on request | 0,5kg | 0 | Add | |
| EHDWNAILW050 | NAILS, hot galvanised iron, for wood, 5cm (2′), 1kg | CH 20,50 | 1kg | 0 | Add | |
| EHDWNAILW075 | NAILS, hot galvanised iron, for wood, 7.5cm (3′) | on request | 0,5kg | 0 | Add | |
| EHDWNAILW080 | NAILS, hot galvanised iron, for wood, 8cm (3′), 1kg | CH 13,10 | 1kg | 0 | Add | |
| EHDWNAILW100 | NAILS, hot galvanised iron, for wood, 10cm (4′), 1kg | on request | 1kg | 0 | Add | |
| EHDWNAILW120 | NAILS, hot galvanised iron, for wood, 12.5cm (5′), 1kg | on request | 1kg | 0 | Add | |
| EHDWNAILW150 | NAILS, hot galvanised iron, for wood, 15cm (6′), 1kg | on request | 1kg | 0 | Add | |
| EHDWNAILW200 | NAILS, hot galvanised iron, for wood, 20cm (8′) | on request | 1kg | 0 | Add | |
| EHDWNAILX025 | NAILS, plain iron, for wood, 2.5cm (1′) | on request | 1kg | 0 | Add | |
| EHDWNAILX040 | NAILS, plain iron, for wood, 40mm, (1.1/2′) | on request | 0,5kg | 0 | Add | |
| EHDWNAILX050 | NAILS, plain iron, for wood, 5cm (2′) | on request | 1kg | 0 | Add | |
| EHDWNAILX075 | NAILS, plain iron, for wood, 7.5cm (3′) | on request | 0,5kg | 0 | Add | |
| EHDWNAILX080 | NAILS, plain iron, for wood, 8cm (3’1/6) | on request | 1kg | 0 | Add | |
| EHDWNAILX100 | NAILS, plain iron, for wood, 10cm (4′) | on request | 1kg | 0 | Add | |
| EHDWNAILX120 | NAILS, plain iron, for wood, 12.5cm (5′), 1kg | on request | 1kg | 0 | Add | |
| EHDWNAILX150 | NAILS, plain iron, for wood, 15cm (6′) | on request | 1kg | 0 | Add | |
| EHDWNAILX200 | NAILS, plain iron, for wood, 20cm (8′) | on request | 1kg | 0 | Add | |
General information

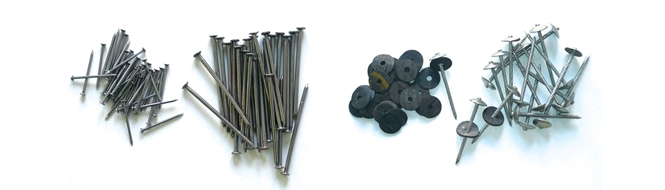

Several types of nails for most current usage: assembling of wood structures, attaching roof and wall covers (iron sheets, plastic sheets).
Standard nails are made of iron. Other materials exist (aluminium, stainless steel, copper) for very specific usage.
Different types of corrosion resistance are available.
- Uncoated: The nails will rapidly rust unless they are stored in a dry environment. These nails are for dry usage. i.e. indoor wood structures, including inside framing, and wall panels.
- Hot deep galvanised: Good level of rust protection. Mandatory for roof nails and recommended for wall cladding nails.
- Other types: Barrel hot galvanized, electroplated, peen-plated, are protected to a certain degree. To look at if the two above products do not answer your needs.
Different types of shank are available.
- Twisted shank mandatory for roof nails and wall cladding nails.
- Standard plain circular shank for other normal applications.
Some specifications may vary with national standards and local market conditions. For locally sourced items, check the relevant national standards or specifications. Any important variation from the EIC standard needs to be approved by a specialist.
Specifications
For all types of nails:
Iron nails, made of carbon steel, cold processed, not heat treated except for galvanisation.
Hot dip galvanised at 300g/m2 +/-10%, or uncoated, as per contract.
Minimum tensile strength 650N/mm2
Unless otherwise specified, nails with flat smooth circular heads, plain shanks and diamond points shall be supplied. Minimum head diameter to be the double of the shank diameter and as per the table below.
Characteristics according to EN10230-1 and EN10016-1 and 2.
In addition, for roof nails only:
Long pitch square twisted or spiral rolled shank. Spring-head type, with sealed umbrella type steel washer + rubber washer. Hot dip galvanised at 300g/m2 +/-10%.
Rubber washer minimum 22mm diameter.
Shank and head diameter according to length, all dimensions in mm:
Standard nails | Roof nails | |||
Length | Shank diameter | Head diameter | Shank diameter | Head diameter |
25 | 1.4 to 1.6 | 3.9 to 4 | — | — |
50 | 2.2 to 3 | 5.5 to 6.8 | 3.4 to 3.8 | >, 18 |
70 to 80 | 3 to 3.8 | 6.8 to 7.6 | 3.4 to 3.8 | >, 18 |
100 | 3.8 to 5 | 7.6 to 10 | 3.4 to 3.8 | >, 18 |
120 | 4.6 to 5 | 9.2 to 10 | — | — |
150 | 6 | 12 | — | — |
Approximate quantity of common nails per kg:
Length x diameter in mm | 25 x 1.6 | 50 x 2.7 | 75 x 3.5 | 100 x 4 | 120 x 5 | 150 x 6 | Roof nails 60×3.8 | Roof nails 75×3.8 |
Quantity in 1kg | 2020 | 440 | 165 | 100 | 50 | 35 | 118 | 106 |
