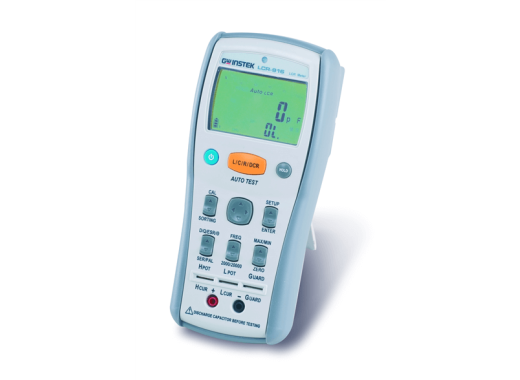

The LCR 900 series from GW Instek is a series of handheld LCR meters with a wide range of applications. The test frequency can be set from 100 Hz to 100 kHz on the LCR-916. The LCR-900 meters have a double display which makes it easy to display two measured values simultaneously. The main display of 20,000 counts offers space for capacity, resistance, induction or resistance. The smaller display, of 2000 counts, offers space for secondary parameters such as quality factor or equivalent series of resistance.
The meters offer two measurement methods, 2-wire and 5-wire measurements, both offering their own advantages. For example, a 5-wire measurement is more accurate.
The meters also offer functions such as data hold, tolerance sorting and zero mode. The LCR-916 also offers the possibility of Min/Max data hold.
The LCR-916 can easily be connected to a computer, where the measured data can be stored using the supplied software. In addition, it is also possible to power this meter via USB.
Models
The models in the LCR-900 series differ mainly in measurement frequencies, supplied accessories and connectivity.
ModelLCR-914LCR-916LCR-916 Tested frequency100 Hz / 120 Hz / 1 kHz100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz USB only power power and software Price 190 €190.00 Excl. VAT 335 €335.00 Excl. VAT Specifications Precision ±, 0.2 % Measuring range Resistance 20 Ω ~ 200 MΩ Inductive 20 H — 20 kH Capacitive 20 pF — 20 mF Dissipation 0,000 ~ 999 Quality factor 0,000 ~ 999 Phase angle -90~ +90 Equivalent circuit Parallel / series Screen LCD mono, 20,000 counts and 2000 counts Connectivity USB Power supply 4x AA, USB, AC adapter Dimensions 95 x 207 x 52 mm Weight 630 g
For more information, please refer to the manual below. In addition, the software can be downloaded here.
Accessories
Both the LCR-914 and 916 are supplied with:
- User’s manual
- Short-circuit block
- Measure cord with alligator clamps 2x
- Batteries
The LCR-916 will continue to be delivered with:
- Magnetic suspension clip
- SMD test probe
- AC adapter
- USB cable
- Software CD
