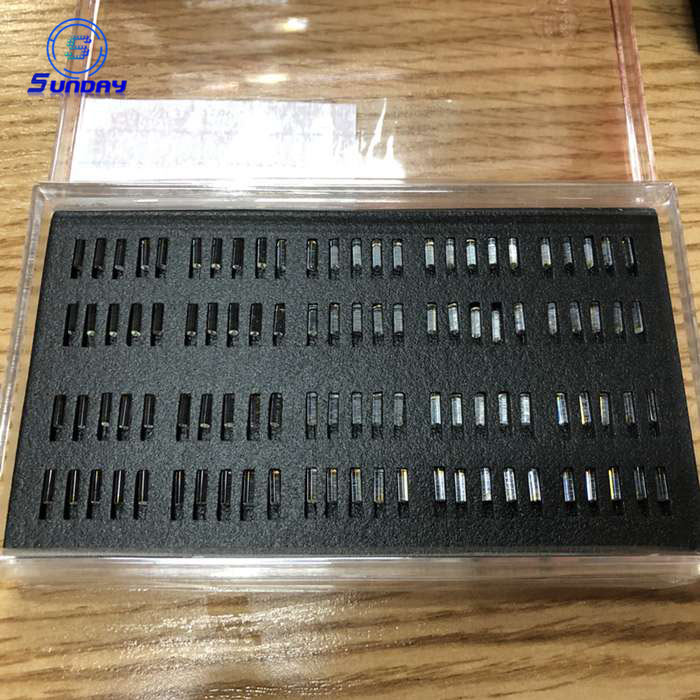

GRIN lenses are used to focus and collimate light within a variety of fiber optic components. GRIN lenses , short gradient index,focus light through a precisely controlled radial varition of the lens material index of refraction from the optical axis to the edge of the lens. This allows a GRIN lens with flat or angle polished surface to collimate light emittied from an optical liber or to focus an incident beam into an optical liber. End faces can be provided with an anti-reflection coating to avoid unwanted back reflection.GRIN lenses can be used for WDM Collimater, Optical Switch,Attenuators and Fiber to fIber couping systems.
Specification
Dia.:0.5mm,1.0mm,1.8mm, can be customer-made size
Pitch:0.22p,0.23p,0.248p
wavelength: 808nm ,1310nm,1550nm,1250-1650nm
Angle: 2В°,6В°,8В°,10В°
Coating:AR coating is on request.
Pinholes/Particles
Defects greater than 30Ојm in diameter are not allowed.
Defects smaller than 10Ојm in diameter are allowed.
Up to three defects with diameter between 10Ојm~30Ојmare allowed.
Scratches
Scratches wider than 5Ојm are not allowed.
Scratches narrower than 2Ојm are allowed.
Up to three scratches with 5Ојm max. width and 200Ојm max length are allowed.
Chips
Chips are not allowed within the concentric area of 90% of the lens diameter.
End Face Planeness
1/4О»пј€О»=6328nmпј‰
