- four precision configurations
- two load configurations
Application specific versions:
- vacuum suitable
- antimagnetic
- radiation resistant
- in black
Modularly individually configurable:
- from basic model to high-end system
- to multi-axis systems
- with individual transmission aperture
- with customer-specific hole pattern
Specifications:
Travel range [°]: | 360 |
Material (housing/worm gear): | Aluminium/Bronze |
Gear ratio: | 180:1 |
Resolution [°]: | 0.002 ** |
0.001 minimum | |
Min. drive torque [Nm]: | 0.05 |
Max. output torque [Nm]: | 1.2 |
Stiffness [µrad/Nm]: | 22 |
Weight [kg]: | 1.5 |
Flange size [mm]: | 32 |
Transm. aperture [mm]: | 20 |
** step motor, 1000 steps/revolution
Precision configurations:
 |  |  |  | ||
Accuracy [«]: | ≤ | 60 | 40 | 25 | on request |
Repeatability (unidir.) [«]: | ≤ | 4 | 2 | 2 | on request |
Reversal error [«]: | ≤ | 30 | 20 | 10 | on request |
Eccentricity [µm]: | ≤ | 8 | 5 | 2 | 2 |
Wobble [«]: | ≤ | 18 | 10 | 8 | 8 |
Dimensions [mm]:
D: | L: | H: |
80 | 95 | 40 |
Accessories:
Motors: | 2-/5-Ph. |
Servo/DC | |
Hand wheels: | 0032 |
Gear boxes: | 2042.10* |
2042.20* | |
Limit switches: | optional |
Zero-point control: | 9100 |
Encoder : | incremental |
absolute | |
Control system: | 9300 |
* adaptor required: M301.301-001

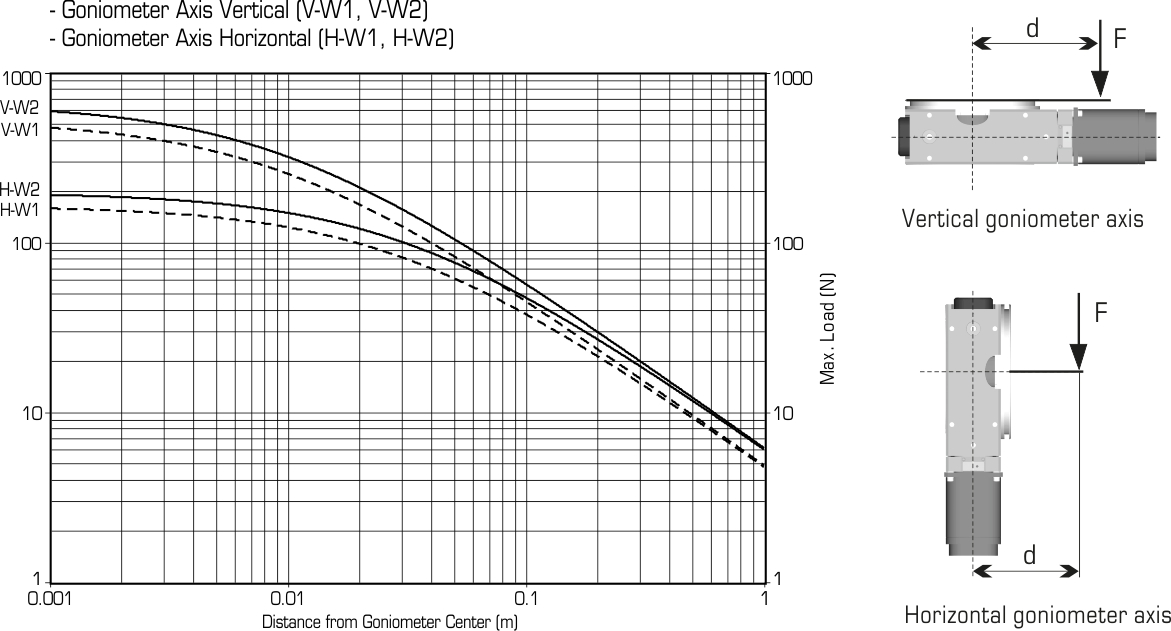

Load configurations:
vertical gonio. axis | horizontal gonio. axis | |
Max. load [N] | 400 | 125 |
Max. load [N] | 650 | 200 |
- vertical goniometer axis (V-, V-)
- horizontal goniometer axis (H-, H-)
