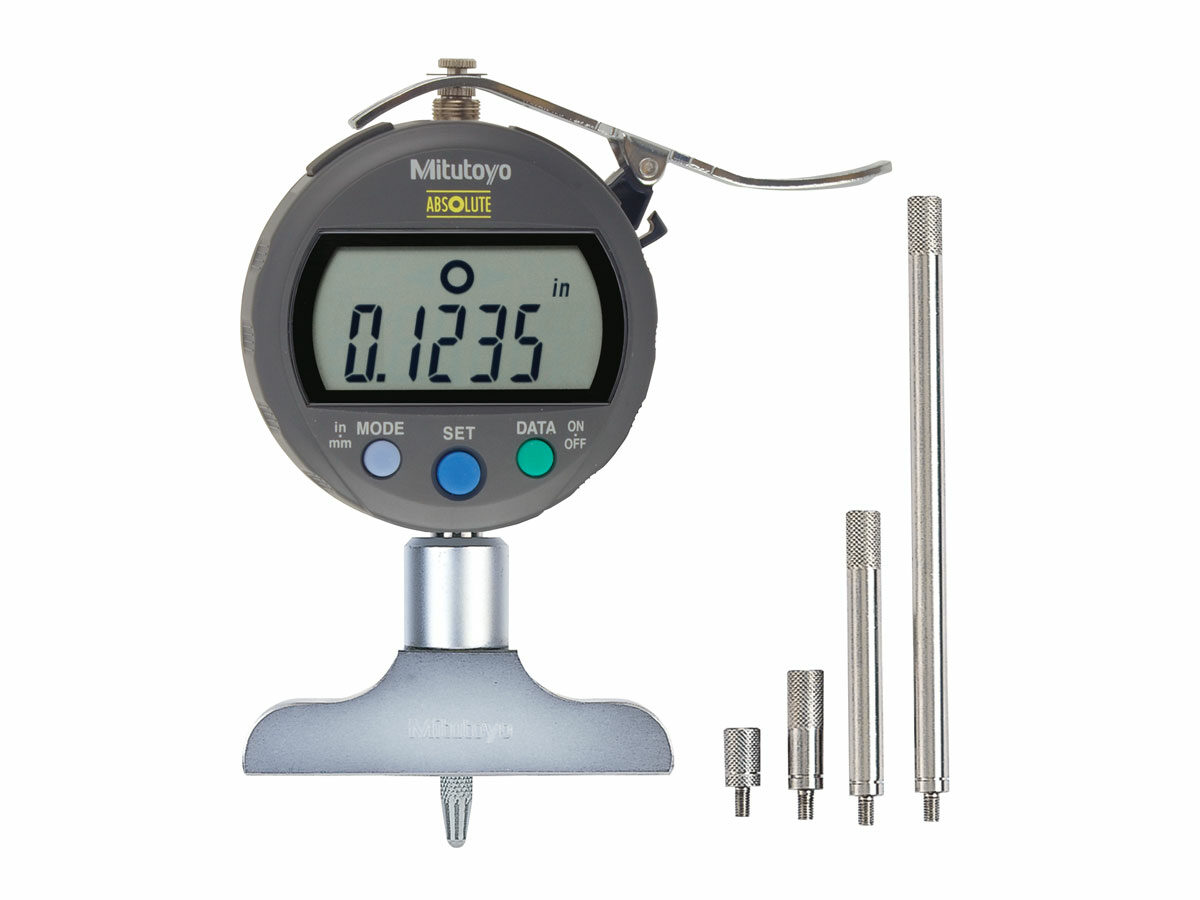

The Mitutoyo ABSOLUTE digital depth gage offers great versatility for measuring a range of depths with included extension rods up to 200mm/8”. The contact point of the depth gage is carbide tipped and its bottom surface is hardened, ground and lapped for improved precision and wear resistance. Measurements are displayed on a digital LCD readout with SPC output for easy automatic recording.
- Available in Metrix and Inch/Metric models
- Keeps track of the origin point for the life of the battery
- 20,000 Hour battery life under normal conditions
- SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on, overspeed errors are also eliminated
- Functions include Origin Set, Zero Setting, Automatic Power On/Off and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Supplied in a fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Resolution: | Accuracy: | Flatness of reference surface base: | Stroke: | Extension rods: | Base size: | Optional Accessories: | |
|---|
| 547-211 | — | Metric | 0-200mm | 0.01mm | ±20µm | 5µm | 12.7mm | 10, 20, 30, 100 | 63.5 x 16mm | — |
| 547-212 | — | Metric | 0-200mm | 0.01mm | ±20µm | 5µm | 12.7mm | 10, 20, 30, 100 | 101.6 x 16mm | — |
| 547-217S | — | Metric, Inch | 0-200mm / 0-8″ | 0.01mm / 0.00050″ | ±.001″ | 5µm / 0.0002″ | 0.5″ | 1, 2, 4, 0.5 | 2.5 x .63″ | — |
| 547-218S |  | Metric, Inch | 0-200mm / 0-8″ | 0.01mm / 0.00050″ | ±.001″ | 5µm / 0.0002″ | 0.5″ | 1, 2, 4, 0.5 | 4 x .63″ | — |
| 547-251 | — | Metric | 0-200mm | 0.001mm | ±5µm | 2µm | 12.7mm | 10, 20, 30, 100 | 63.5 x 16mm | — |
| 547-252 | — | Metric | 0-200mm | 0.001mm | ±5µm | 2µm | 12.7mm | 10, 20, 30, 100 | 101.6 x 16mm | — |
| 547-257S | — | Metric, Inch | 0-200mm / 0-8″ | 0.001mm / 0.00005″ | ±.0003″ | 2µm / 0.00008″ | 0.5″ | 1, 2, 4, 0.5 | 2.5 x .63″ | — |
| 547-258S | — | Metric, Inch | 0-200mm / 0-8″ | 0.001mm / 0.00005″ | ±.0003″ | 2µm / 0.00008″ | 0.5″ | 1, 2, 4, 0.5 | 4 x .63″ | — |
| 547-211 |
| 547-212 |
| 547-217S |
| 547-218S |
| 547-251 |
| 547-252 |
| 547-257S |
| 547-258S |
Технические характеристики
| Technology: | Digimatic |
|---|
| Display: | LCD |
|---|
| Battery: | SR44 (1 pc.) 938882 |
|---|
| Battery life: | Approx. 3.5 years under normal use |
|---|
| SPC Output: | Yes |
|---|
| Measuring Force: | 1.5N |
|---|
