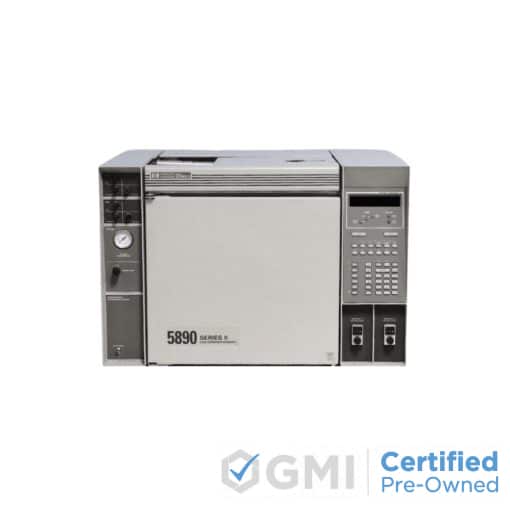

Product Description Compatible with Agilent data analysis software Time-table operation Diagnostic function Electronic pressure control option Power failure recovery GMI sells HP 5890 series II GC Systems and currently has inventory to build virtually any configuration. The Hewlett Packard 5890 and 5890 II series continues to be the gold standard of reliability for gas chromatography and is still used by tens of thousands of scientists in thousands of laboratories worldwide. HP 5890 series II and 5890 series II Plus GCs can be used reliably to analyze chemical components of complex samples in industry, toxicology, drug screening, food safety, forensics, as well as general chemical analysis. Each instrument can be configured to fit your specific analytical needs and budget. Remember that 75% of all analysis can be done as well on a HP 5890 as on the next generation 6890 series with no degradation in data obtained. The HP 5890 Series II Plus gas chromatograph boasts of five inlet and six detector options as well as several control and pressure elements. Additional options include gas sampling valves and both liquid and headspace auto samplers as well as packaged with Chromperfect control and analysis software running on Windows 10! Hewlett Packard Gas Chromatographs under the HP 5890 series can provide users with options for columns, detectors and inlets to heighten equipment versatility. Listed below are common configurations of the Hewlett Packard 5890 II Series 5890 Series II single injector (split/split less or Packed) single FID detector 5890 Series II single injector (split/split less or Packed) single TCD detector 5890 Series II dual injectors (split/split less or Packed) dual FID detectors 5890 Series II dual injectors (split/split less or Packed) dual TCD detectors 5890 Series II dual injectors (split/split less or Packed) dual FID/TCD detectors Technical Specifications HP 5890 Series II HP 5890 Plus Height 18-3/8 inches (465 mm) 18-3/8 inches (465 mm) Width 25-7/8 inches (655 mm) 25-7/8 inches (655 mm) Depth 20-1/8 inches (511 mm) 20-1/8 inches (511 mm) Weight 90 lbs (41 kg) 90 pounds (41 kg) Voltages 120/200/220/240 120/200/220/240 Range +5, 10% each +5, 10% each Frequency 47.5 66 Hz 47.5 66 Hz Consumption 2200 VA max 2200 VA max Output 7500 Btu/hr max 7500 Btu/hr max Operating Range 0-55C ambient (20-27 C optimum) 5-95% humidity (50-60% optimum) 0-55C ambient (20-27 C optimum) 5-95% humidity (50-60% optimum) Five heated zones standard Two detectors Two inlets One auxiliary Two detectors Two inlets One auxiliary Methods stored Two Two Flow Sensor Range Accuracy 0-35 sccm [sccm = standard cc/minute]±,3 sccm for He and H2 ±,5 sccm for N2 and ArCH4 N/ A Extended range Accuracy 100-150 sccm ±,15 sccm N/ A
Технические характеристики
Technical Specifications
| HP 5890 Series II | HP 5890 Plus | |
| Height | 18-3/8 inches (465 mm) | 18-3/8 inches (465 mm) |
| Width | 25-7/8 inches (655 mm) | 25-7/8 inches (655 mm) |
| Depth | 20-1/8 inches (511 mm) | 20-1/8 inches (511 mm) |
| Weight | 90 lbs (41 kg) | 90 pounds (41 kg) |
| Voltages | 120/200/220/240 | 120/200/220/240 |
| Range | +5, — 10% each | +5, — 10% each |
| Frequency | 47.5 – 66 Hz | 47.5 – 66 Hz |
| Consumption | 2200 VA max | 2200 VA max |
| Output | 7500 Btu/hr max | 7500 Btu/hr max |
| Operating Range | 0-55°C ambient (20-27 °C optimum) 5-95% humidity (50-60% optimum) | 0-55°C ambient (20-27 °C optimum) 5-95% humidity (50-60% optimum) |
| Five heated zones standard | Two detectors Two inlets One auxiliary | Two detectors Two inlets One auxiliary |
| Methods stored | Two | Two |
| Flow Sensor | ||
| Range Accuracy | 0-35 sccm [sccm = standard cc/minute]±3 sccm for He and H2 ±5 sccm for N2 and ArCH4 | N/ A |
| Extended range Accuracy | 100-150 sccm ±15 sccm | N/ A |
