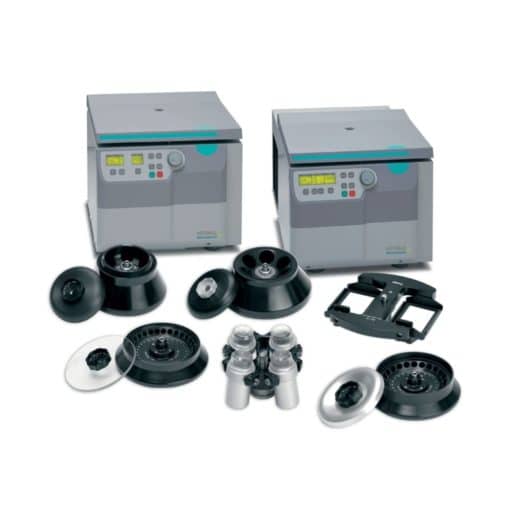

Product Description With 17 available rotor options, the Z326 series defines the term universal. Swinging bucket rotors and high speed angled rotors are available to accept tubes from 0.2ml up to 85ml, making the Z326 series suitable for nearly any laboratory application. Despite an impressive capacity of up to 4 x 145ml (or 6 x 85ml), the Z326 is surprisingly compact with both the standard air-cooled model and refrigerated model featuring a width of just over 15 inches. Advanced microprocessor controls allow for instant rotor identification, which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust accel/decel rates, and change the end of run alarm tone. Technical Specifications Model Standard Z326 Refrigerated Z326-K Speed Range 200 to 18,000 rpm Max. RCF 23,542 xg Max. Capacity 4 x 145ml Dimensions 15.8 x 18.9 x 14.1 in. (40 x 48 x 35.8 cm.) 15.8 x 27.5 x 14 in. (-K) (40 x 70 x 35.8 cm.) Timer up to 99 hr, 59min and continuous Temp. Range -20C to 40C (-K only) Weight 94.6 lbs 132 lbs Electrical 120V, 60HZ Power (Watts) 455W 600W Rotor Options Z326 Z326 Universal Centrifuge, without rotor Z326-K Z326 Universal Centrifuge, Refrigerated, without rotor Z306-100 Swing Out Rotor, Economy, 4 x 145ml, (4,500rpm/3,350xg) accepts 1.5ml up to 145ml tubes, requires inserts (see pdf literature for a full listing) Z326-100H Swing Out Rotor, with sealed buckets 4 x 100ml, (5,000rpm/3,885xg) accepts 1.5ml up to 100ml tubes, requires inserts (see pdf literature for a full listing) Z326-100H-AC Swing Out Rotor, without buckets 4 x 100ml, (5,000rpm/3,885xg) accepts 1.5ml up to 100ml tubes, requires inserts (see pdf literature for a full listing) Z326-02MP Swing Out Rotor, 2 x 3 Microplates (4,500rpm/2,716xg) Z326-MPCA NEW! Universal, 3 place chamber slide and 35/60mm dish adapter for microplate carriers 2/pk Z326-1220H Rotor, 12 x 1.5/2.0ml (18,000rpm/23,542xg) Z326-2420 Rotor, 24 x 1.5/2.0ml with Quick-Seal lid (Z326: 14,000rpm/18,624xg) (-K: 15,000rpm/21,379xg) Z326-2420H Rotor, 24 x 1.5/2.0ml, Hermetically Sealed (Z326: 14,000rpm/18,624xg) (-K: 15,000rpm/21,379xg) Z326-3020H Rotor, 30 x 1.5/2.0ml Hermetically Sealed (Z326: 13,000rpm/17,758xg) (-K: 14,000rpm/20,505xg) Z326-4420 Rotor, 44 x 1.5/2.0ml with Quick-Seal lid (Z326: 15,000rpm/21,379xg) Z326-6405 Rotor, 64 x 0.5ml (13,500rpm/16,298xg) Z326-3202 Rotor, 4 x PCR strips (15,000rpm/15,343xg) Z326-1205 Rotor, 12 x 5ml (Z326: 14,000rpm/18,624xg) (-K: 15,000rpm/21,379xg) Z326-1215 Rotor, 12 x 15ml (6,000rpm/4,427xg) Z326-3015 Rotor, 30 x 15ml (4,500rpm/2,830xg) Z326-0650-LS Rotor, 6 x 50ml (6,000rpm/4,427xg) Z326-0685-25 Rotor, 6 x 85ml Super rotor Fits 85ml, 50ml, 15ml, and 7ml (Z326: 11,000rpm/13,932xg) (-K: 13,5000rpm/20,984xg) Z326-0650-HS Rotor, 6 x 50ml round tube (12,000rpm/13,522xg) Z326-1050 Rotor, 10 x 50ml conical (7,500rpm/8,174xg) Z326-2010 Rotor, 12 x 10ml (12,000rpm/15,775xg) Product Brochure
Технические характеристики
Technical Specifications
| Model | Standard — Z326 | Refrigerated — Z326-K |
| Speed Range | 200 to 18,000 rpm | |
| Max. RCF | 23,542 xg | |
| Max. Capacity | 4 x 145ml | |
| Dimensions | 15.8 x 18.9 x 14.1 in. (40 x 48 x 35.8 cm.) | 15.8 x 27.5 x 14 in. (-K) (40 x 70 x 35.8 cm.) |
| Timer | up to 99 hr, 59min and continuous | |
| Temp. Range | -20°C to 40°C (-K only) | |
| Weight | 94.6 lbs | 132 lbs |
| Electrical | 120V, 60HZ | |
| Power (Watts) | 455W | 600W |
