| Display and Control Front Panel |
| 5-1/2 Digit Synthesizer |
Features:
- Frequency range: 0.001 Hz to 13 MHz
- GPIB Compatiblity
- 500 Settings per second
- Phase lock input: TTL level (from 10 Hz to 13 MHz)
- Composite waveform/offset to ±7.5 V peak into 50 ohm load.

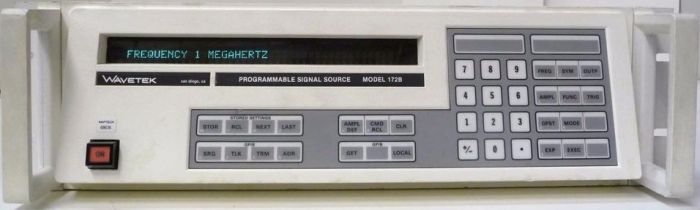

The Wavetek 172B Programmable Signal Source has a frequency range from 0.0001 Hz to 13 MHz. Outputs include sine, square, triangle, pulses, ramps, haversine, havertriangle, and DC variable to 30 V p-p (15 V p-p into 50 ohm load) with 3-digit resolution.
Технические характеристики
| Manufacturer | WaveTek |
|---|---|
| Condition | Used |
