| Option 10, User-Defined Modulation Waveform Software |
| Option 12, Frequency and Phase |
| Option 14, Amplitude Modulation |
| Option 15x, High Power |
| Option 16, High Stability Time Base |
| Option 17, Delete Front Panel |
| Option 18, DC Output: + 15 VDC, 1A (nominal) |
| Option 1A, Rack Mount with slides |
| Option 1B, Rack Mount without slides |
| Option 20, Scan Modulation |
| Option 22, extends frequency coverage from 0.1 Hz to 10 MHz |
| Option 26x, Pulse modulation |
| Option 27, Internal LF and Pulse Generators |
| Option 28x, Analog Modulation Suite |
| Option 2E, Electronic Step Attenuator |
| Option 2x, Mechanical Step Attenuator |
| Option 3, Ultra Low Phase Noise, improved Standard Phase Noise |
| Ultra-Stable Phase Tracking | Option 3X, Premium Phase Noise — improves option 3 (<, 1 kHz offset), for models except MG3691C | Option 3XA, Premium Phase Noise — improves option 3 (<, 1 kHz offset), for MG3691C |
| Option 4, extends frequency coverage from 8 MHz to 2.2 GHz |
| Option 5, extends frequency coverage from 8 MHz to 2 GHz |
| Option 6, Analog Sweep Capability |
| Option 7, IF Up-Conversion |
| Option 8, Power Monitor |
| Option 9, Rear Panel Output |
Additional Features:

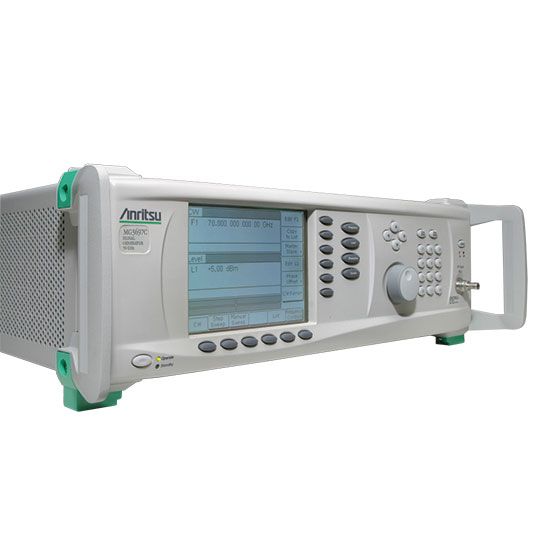

The Anritsu MG3690C series of broadband signal generators covers audio, HF, VHF, UHF, RF and microwave frequencies from 0.1 Hz to 70 GHz in single coaxial output and up to 500 GHz or beyond, with external multipliers. In addition, it is easy to operate either through intuitive front panel controls or remotely via GPIB or Ethernet connectivity. Thus, it is an ideal signal source for both RF and microwave requirements, fully configurable for simple to high performance applications.
The Anritsu MG3690C replaces the MG3690B signal generator, offering three levels of best-in-class SSB phase noise performance, Standard, Ultra Low Phase Noise (option 3) and Premium Phase Noise (option3X), along with full suite of modulation capabilities for signal simulations from simple to the most complex. For IQ modulation, the IF input option allows the easy up-conversion of an externally IQ-modulated RF signal.
It preserves full backward compatibility with the MG3690A/B and previous 68C/69B series of RF and microwave signal generators.
Технические характеристики
| Manufacturer | Anritsu |
|---|---|
| Condition | Used |
| Frequency | 40 GHz |
