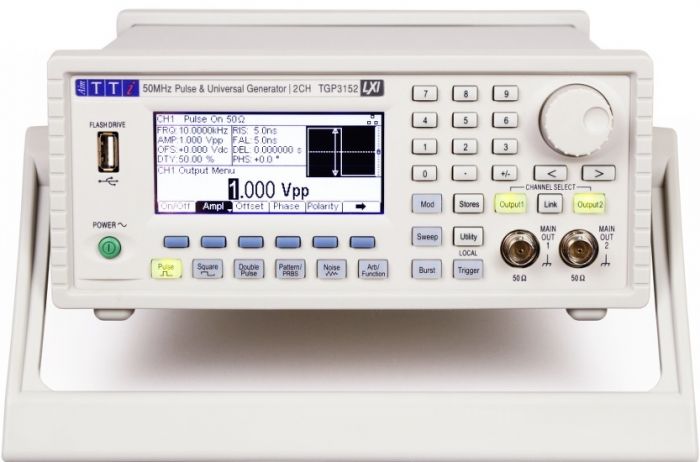

Генератор импульсов TGP3152 Thurlby Thandar Instruments

Features:

• Pulse waveforms from 1mHz to 50MHz, minimum rise time 5ns
• Very low jitter synchronous and asynchronous operation
• Pulse, double pulse, pulse pattern and PRBS waveforms
• Pulse period, width and delay resolutions of 100ps or 11 digits
• Independently variable rise and fall times from 5ns to 800 seconds
• True low jitter asynchronous operation, externally triggered pulses or pulse reconstruction
• High drive capability output can provide 20V pk-pk into 50W (unmatched)
• Wide range of pulse modulations including AM, FM, PM, FSK, BPSK, SUM, PWM, PDM
• using internal or external modulation sources.
• Triggered (burst count) or gated operation using internal or external trigger sources
• Full Noise generator to 25MHz with selectable crest factor and user defined distribution
• Full Arbitrary/Function generator with 16 waveform types — sine waves up to 50MHz
• Arbitrary waveforms at 800MS/s sampling rate and 16-bit vertical resolution
• Internal channel coupling, tracking and modulations (2 channel models)
• Extensive internal/external modulation of all waveform types
• Linear and logarithmic sweeps of all waveform types
• Front panel mounted USB Flash drive interface
• GPIB, USB and LXI compliant LAN interfaces

Application:

• Stress testing designs adding defined jitter and or delay
• Clock frequency simulation, with glitchfree pulse parameter changes
• Data sequencing patterns for Serial data testing (Pattern Generation)
• Asynchronous pulse signal conditioning
• Op Amp slew rate and asymmetrical characterisation
• Propagation delay testing

Specifications:

• Channels: 50 MHz, 2 channels
• Frequency Range: 1mHz to 50MHz [1mHz to 25MHz]
• Frequency Resolution: 1mHz, 11 digits

The TGP3152 is a pulse generator. The TGP3100 Series are true pulse generators using all digital techniques. They can replicate the capabilities of traditional pulse generators whilst adding many additional facilities such as pulse modulations.
