Additional Features:
- 4 Independent Channel Outputs
- Configurations: 6 Memory Slots
- 5 ps Delay Resolution
- TCXO 280 ppb oscillator
- <, 15 ps RMS Jitter
- “Virtual” Channel Timers
- Fast Rise Time, <, 2 ns
- 8 Independent Pulses (width & delay) with the virtual timers
- Up to 20 MHz External Trigger Rate
- Wireless Option Via Bluetooth
- Full Customer Support

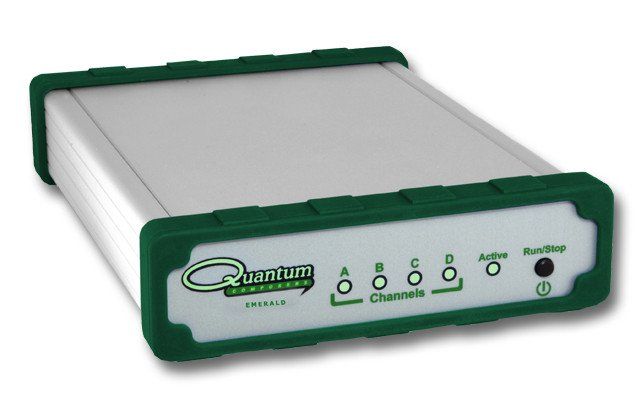

The 9254 Emerald comes standard with 4 independent outputs and a TCXO 280ppb oscillator. The resolution and accuracy of the width, delays, and period counters is improved over previous instruments and allows for finer adjustments and more precise synchronization. This model also features virtual channels adding 4 «virtual» channels which effectively double the number of channel timers the unit may utilize and a «Period Counter» which measures the time between incoming external trigger pulses. The Emerald also offers an optional (TZ50), for driving 50 ohm loads & adjustable output module. With intuitive, streamlined GUI control of timing parameters and quick recall of up to 6 system configurations, the instrument is instantly ready for use.
Complete control of the Emerald is provided through the standard USB interface or optional Bluetooth connectivity.
Технические характеристики
| Manufacturer | Quantum Composers |
|---|---|
| Condition | New |
