| GPIB |
| +/-32V REAR PANEL OUTPUTS |
| 1 PPM TXCO TIMEBASE |
Additional Features:
- Four independent delay channels
- Two fully-defined pulse channels
- 5 ps delay resolution
- 50 ps RMS jitter
- Adjustable amplitude and offset
- Delays up to 1000 seconds
- Standard GPIB interface
- Optional ±32 V output

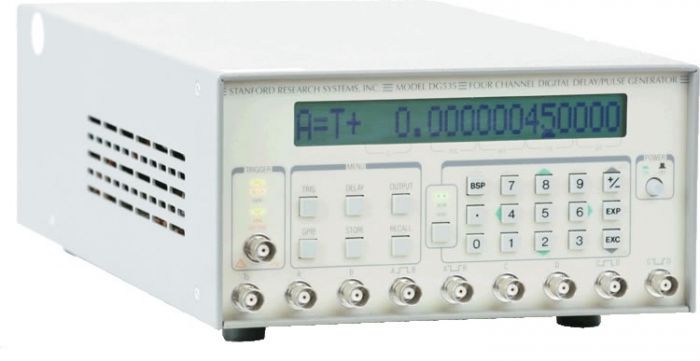

The Stanford Research DG535 Digital Delay and Pulse Generator provides four precisely-timed logic transitions or two independent pulse outputs. The high accuracy, low jitter, and wide delay range make the Stanford Research DG535 ideal for laser timing systems, automated testing, and precision pulse applications.
Технические характеристики
| Manufacturer | Stanford Research |
|---|---|
| Condition | Used |
