Additional Features:
- 1 Module, 2 independent outputs
- Configuration Storage Slots- 12 Memory Slots
- 250 ps Timing Resolution
- <, 50 ps Channel to Channel Jitter
- Benchtop Design
- Wide Variety of Channel Output Options
- Free LabVIEW Drivers
- 2 Year Warranty

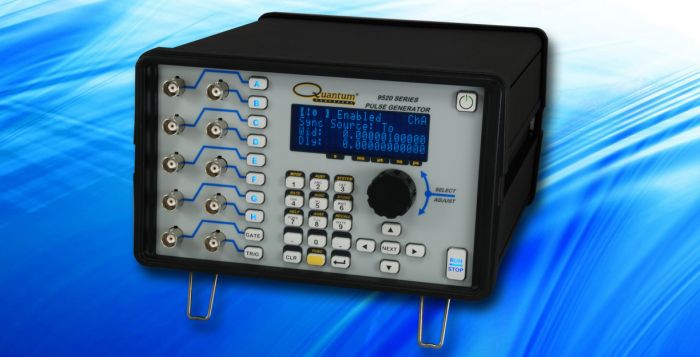

The 9522 Pulse Generator offers dual inputs, functioning as dual triggers or trigger/gating through BNC or optical connections. The user also has per channel modes options and can keep specific channels free-running and other channels triggered.
Modular output boards provide a variety of output options allowing the user to customize their own instrument from stock. The output modules selection array includes both TTL/CMOS with adjustable amplitude, 35 V high voltage electrical, and optical at either 820 nm or 1300 nm. For those working with optical triggering, optical inputs are available.
The 9522 is equipped with standard USB and RS-232 unit and a GPIB and Ethernet module as an option. Our standard programming protocols are backwards compatible and complimentary NI certified LabVIEW drivers are available.
Advanced features include an Increment option which provides incrementing delay times and pulse widths after each trigger or internal burst count. Illuminated channel buttons denote if the channel is enabled not a pulse condition. Clock-In functionality gives the user the ability to synchronize using a master clock from 10 MHz to 100 MHz.
Технические характеристики
| Manufacturer | Quantum Composers |
|---|---|
| Condition | New |
