| AC Input-Single Phase 230VAC |
| AC Input-Three Phase 208VAC |
| AC Input-Three Phase 400VAC |
| IEEE Multi-Drop Interface |
| Current Programming with 4-20mA signal |
| Voltage Programming, user-selectable 0-5V or 0-10V signal |
| LAN Interface |
| Multi-Drop Slave Option |
| USB Interface |
Additional Features:
- High Power Density 750W in 1U
- Wide Range Input: 85-265 VAC Continuous, single phase, 47/63 Hz
- Active Power Factor Correction: 0.99 typical
- Built-in RS-232/RS-485 Interface
- Last Setting Memory, Front Panel Lockout
- Advanced Parallel reports total current up to four identical units
- Global Commands for Serial RS-232/RS-485 Interface
- Reliable Encoders for Voltage and Current Adjustment
- Constant Voltage/Constant Current auto-crossover
- Parallel Operation with Active Current Sharing
- Independent Remote ON/OFF and Remote Enable/Disable
- External Analog Programming and Monitoring
- Reliable Modular and SMT Design
- 19″ Rack Mounted ATE and OEM applications
Applications:
- Test and Measurement
- Semiconductor Processing
- Aerospace and Satellite Testing
- Laser Diode
- Heater Supplies
- RF Amplifiers and Magnets

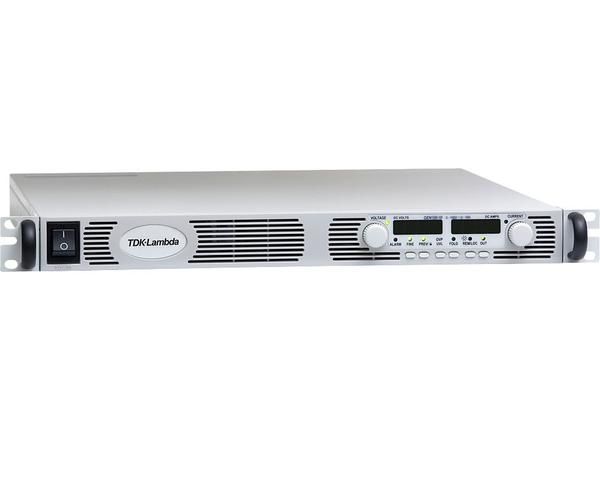

The Lambda GEN80-9.5 programmable power supply sets a new standard for flexible, reliable, AC/DC power systems in Test & Measurement, Industrial and Laboratory applications. The Gen80-9.5 is designed for demanding application with common controls that are shared across all platforms.
Multiple remote programming methods are available including the built-in Remote Analog Program/Monitor and Remote Digital Serial Communication (RS-232/RS-485) Interfaces along with the optional LXI certified LAN, IEEE (IEEE 488.2 & SCPI compliant), USB (2.0 compliant) and Isolated Analog (5V/10V and 4-20mA) Interfaces.
Технические характеристики
| Manufacturer | Lambda |
|---|---|
| Condition | Used |
| Current | 9.5 A |
| Voltage | 80 V |
| Power | 750 W |
