| AC Input-Single Phase 230VAC |
| AC Input-Three Phase 208VAC |
| AC Input-Three Phase 400VAC |
| IEEE Multi-Drop Interface |
| Current Programming with 4-20mA signal |
| Voltage Programming, user-selectable 0-5V or 0-10V signal |
| LAN Interface |
| Multi-Drop Slave Option |
| USB Interface |
Additional Features:
- Voltage: 0-8V
- Current: 0-300A
- Power: 2.4kW
- High Power Density 2.4kW in 1U
- Auxiliary Outputs, 5V, 0.2A, 15V, 0.2A For Increased System Control Functionality
- RoHS Compliant
- Wide Range of popular worldwide AC inputs, 1Ø (230VAC) & 3Ø (208VAC)
- Active Power Factor Correction (Single-Phase & Three-Phase AC Input)
- Built-in RS-232/RS-485 Interface Standard
- Global Commands for Serial RS-232/RS-485 Interface
- Auto-Re-Start/Safe-Start: user selectable
- Last-Setting Memory
- High Resolution 16 bit ADCs & DACs
- Low Ripple & Noise
- Front Panel Lock selectable from Front Panel or Software
- Reliable Encoders for Voltage and Current Adjustment
- Constant Voltage/Constant Current auto-crossover
- Parallel Operation with Active Current Sharing, up to four identical units.
- Advanced Parallel Master / Slave. Total Current is Programmed and Measured via the Master.
- Independent Remote ON/OFF and Remote Enable/Disable
- External Analog Programming and Monitoring (user selectable 0-5V & 0-10V)
- Reliable Modular and SMT Design
- 19” Rack Mount capability for ATE and OEM applications
- Optional Interfaces: Isolated Analog Programming and Monitoring Interface (0-5V/0-10V & 4-20mA), IEEE 488.2 SCPI (GPIB) Multi-Drop, LXI Compliant LAN, USB Interface
- LabView and LabWindows drivers

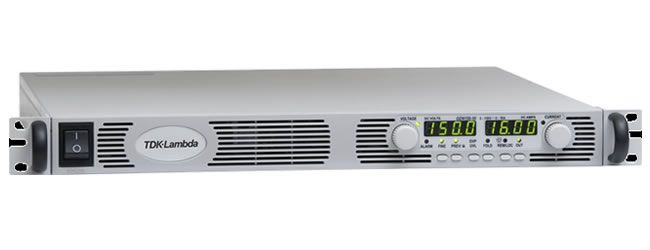

The Lambda GEN8-300 sets a new standard for flexible, reliable, AC/DC power systems in OEM, Industrial and Laboratory applications. The Lambda GEN8-300 has been designed to meet the demands of a wide variety of applications. System Designers will appreciate new, standard, remote programming features such as Global commands. Also, new high-speed status monitoring is available for the RS-485 bus.
Test systems using the IEEE-488 bus may achieve significant cost savings by incorporating the Optional IEEE Multi-Drop Interface for a Master and up to 30 RS-485 Multi-Drop Slaves. Then up to 30 Slaves may be equipped with the less expensive Optional RS-485 Multi-Drop (MD) interface.
Технические характеристики
| Manufacturer | Lambda |
|---|---|
| Condition | Used |
| Current | 300 A |
| Voltage | 8 V |
| Power | 2.4 kW |
