| AC Input-Single Phase 230VAC |
| AC Input-Three Phase 208VAC |
| AC Input-Three Phase 400VAC |
| IEEE Multi-Drop Interface |
| Current Programming with 4-20mA signal |
| Voltage Programming, user-selectable 0-5V or 0-10V signal |
| LAN Interface |
| Multi-Drop Slave Option |
| USB Interface |
Additional Features:
- Voltage: 0-150V
- Current: 0-34A
- Power: 5100W
- Ripple RMS: 25mV
- Built-in RS-232/RS-485 Interface
- High Resolution 16 bits ADCs & DACs
- Reliable Encoders for Voltage and Current Adjustment
- Parallel Operation with Active Current Sharing and Current Sum
- Independent Remote ON/OFF and Remote Enable/Disable
- External Analog Programming and Monitoring
- Reliable Modular and SMT Design

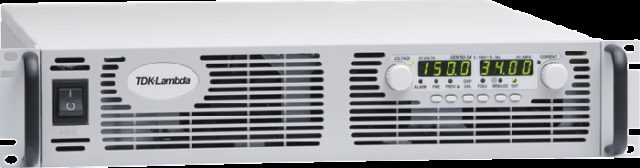

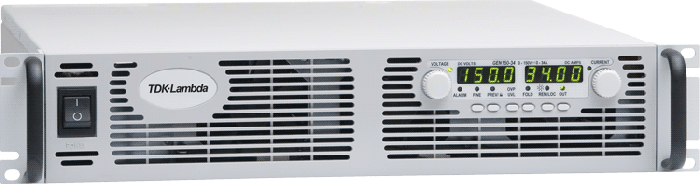

The Lambda GEN150-34 programmable power supply sets a new standard for flexible, reliable, AC/DC power systems in OEM, Industrial and Laboratory applications.
Технические характеристики
| Manufacturer | Lambda |
|---|---|
| Condition | Used |
| Current | 34 A |
| Voltage | 150 V |
| Power | 5.1 kW |
