Product Description Autoloader with continuous loading capacity STAT mode on open and closed tube Micro sampling from whole blood (CBC: 30 uL DIFF: 53 uL) Integrated validation station with LCD-color touch screen Automatic sample re-run Customized Dilution Ratio (CDR) Windows XP MDSS technology DHSS technology The HORIBA ABX Pentra XL 80 is a leading hematology analyzer with 26 parameters and five part DIFF. In addition to unique new features, the Pentra XL 80 incorporates all the key features of the Pentra 80 including fully automated throughput of 80 samples per hour to provide a CBC + DIFF leucocyte count. The new Customized Dilution Ratio (CDR) of the Pentra XL 80 hematology analyzer enables automatic linearity extension, and completely removes the need for manual dilution of out-of-range samples. The CDR pushes back the linearity limits with a choice of three different ratios (1/2, 1/3, 1/5) for over range samples without any operator intervention To provide a complete solution to laboratory requirements, the ABX Pentra XL 80 analyzer also incorporates a cutting-edge fully-integrated data management system that enables onboard validation of results. The Integrated Validation Station automatically provides positive and negative Delta check flagging, and performs patient reporting using selective results for mixing from run, re-run and manual entries. This HORIBA analyzer is also ideal for micro sampling, since the technology behind the Pentra XL 80 is based on a patented double sampling needle and MDSS technology. Furthermore, as both rack and sample barcodes are read, the ABX Pentra XL 80 guarantees accurate sample identification as well as end-over-end rotation of tubes prior to sampling. Technical Specifications HORIBA ABX Pentra XL 80 Samples 80 samples/hour (open or closed tube) Parameters (26) WBC, RBC, HGB,HCT,MCV, MCH, MCHC, RDW, PLT, MPV, PCT, PDW % and #NEU, LYM, MON, EOS, BAS, *ALY (#and %), *LIC (# and %) * RUO (Research Use Only) Graphs High-definition LMNE color matrix PLT, RBC, WBC/BAS curves Volume CBC mode: 30 uL, CBC + DIFF mode: 53 uL Stability Up to 48 hours Operating sample mode Autoload 10 racks (100 tubes) capacity Sample mixing with end-over-end tube rotation Closed or open tube STAT mode Identification Alphanumeric, Barcode reader (internal and external) Flags 46 possible pathologic flags Weight 122 lbs Power supply 100/240 V 50/60 Hz 300 VA Dimensions 22 x 33.4 x 23.3 (H x W x D) Printer Laser Throughput 80 samples per hour Data processing Windows XP CDROM (R/W), RS232C, TCP/IP, 2 x USB1 Mono and bi-directional connection ASTM protocol Memory capacity 10,000 results + graphics

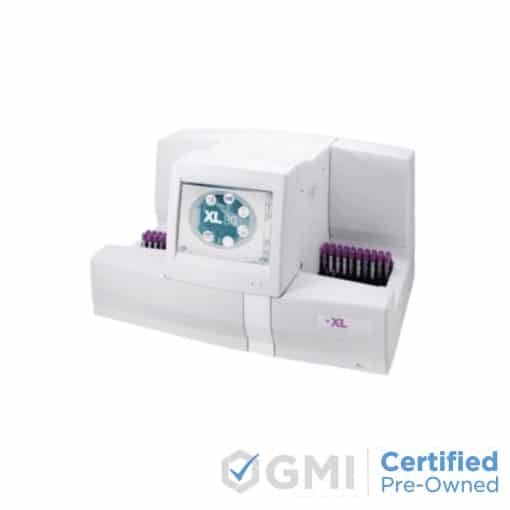

Гематологический анализатор ABX Pentra XL 80
Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!
