Gear Tooth Micrometers

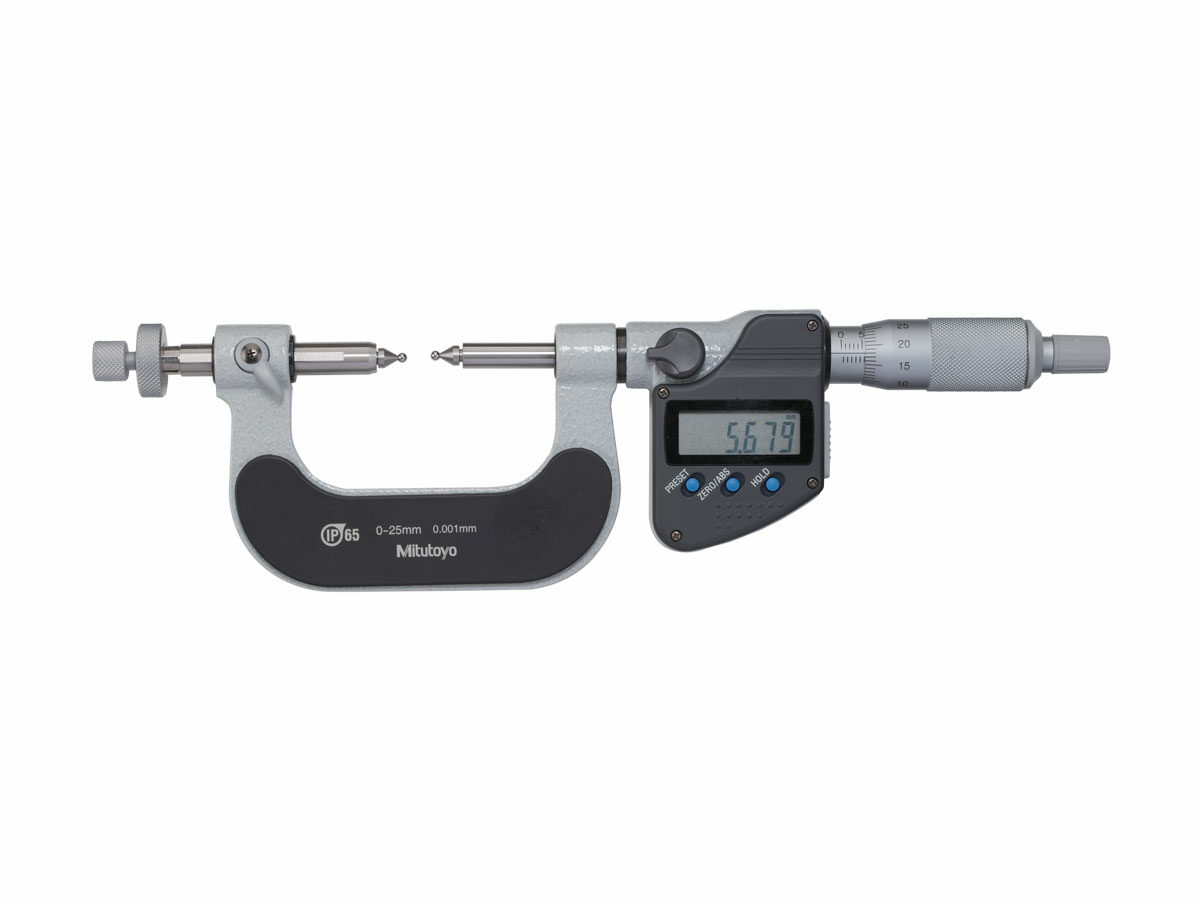

The Mitutoyo gear tooth micrometer measures the over-pin diameter of gears. Precision carbide anvil and spindle ball-tipped measuring surfaces are interchangeable, with optional ball-tip faces allowing for measurement of various gear modules. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Readings are displayed on an easy-to-read LCD readout.

• Available in Metric and Inch/Metric models
• Interchangeable ball anvil-spindle tips for various gear modules (0.5-5.25) are optional
• Ratchet mechanism provides an audible click to ensure measurement is performed with a constant force
• SPC output function allows for quick and easy data management in real time
• Functions include Zero/ABS Setting, Data Hold, Data Output, Function Lock, 2 Presets, and inch/mm conversion (on inch/metric models only)
• Alarm: Low Voltage, Counting Value Composition Error
• Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
• Frame has a non-slip finish for better grip in shop environments
• Includes a standard bar except for 0-25mm and 0-1” models
• Supplied in fitted plastic case (models over 150mm have a wooden case)
• IP65 protection permits use in environments exposed to cutting oil, dust, etc.**

**Anti-corrosion treatment is required after use
