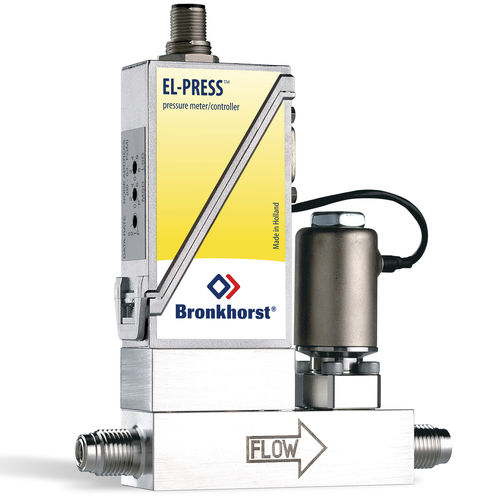

Bronkhorst® EL-PRESS Metal Sealed Pressure Meters and Controllers are characterised by their unique, patented metal-to-metal seal construction with excellent resealing capability. Furthermore they distinguish themselves by a high surface quality and are therefore especially suitable for meeting the semiconductor industry requirements as well as other high purity gas applications. The base blocks of the Pressure Meters and Controllers have 1/4′ face seal male (VCR) connections. Todays instruments are equipped with a digital pc-board, offering high-accuracy, excellent temperature stability and fast response. Features •Resealable metal-to-metal outer seal construction (no rings) •Electropolished wetted parts •Cleanroom assembled •Analog and digital I/O, with optionally integrated interface to CANopen®, DeviceNet™, EtherCAT®, PROFIBUS DP, PROFINET, Modbus or FLOW-BUS •High accuracy and repeatability •Stable control, even at varying process volumes
Технические характеристики
CharacteristicsProductgasTechnologymembraneNumber of stagessingle-stageOutput signaldigital outputApplicationsindustrial, high-purityOther characteristicshigh-purity, digitalPressure
Max.: 64 bar (928.24 psi)
Min.: 1.28 bar (18.56 psi)
