Description

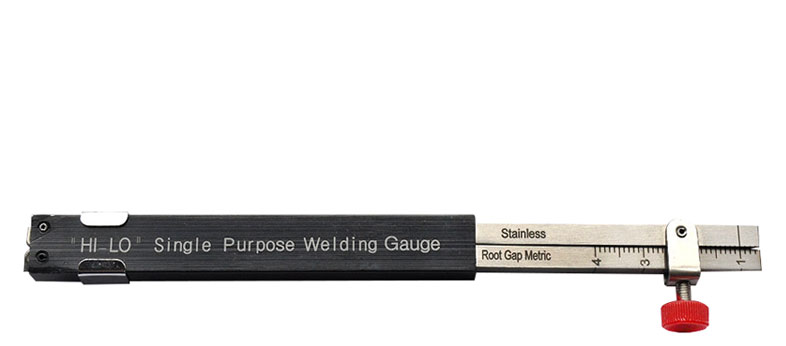

The GAL Economy Single Purpose Hi-Lo Welding Gauge is ideal for inspecting root weld space, measuring fit-up gap between 1/32′ and 3/16′, assisting in eliminating rejects, and improving productivity. With a quick four-step check, detecting internal misalignment is simple and fast. Tolerance for this imported model is ± 0.006′. Imperial and Metric options available.
Технические характеристики
Specs
| Measurement Scale | Inch or Metric |
| Material | Stainless Steel |
| Measuring Range | Fit-up gap between 1/32 and 3/16 after fit-up |
| Tolerance | ±, 0.006 |
