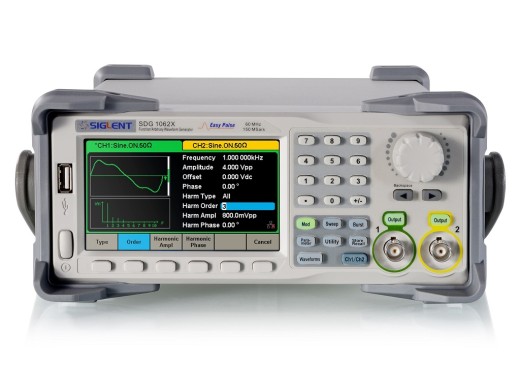

Функциональный генератор Siglent SDG1062X

83 025

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!

The Siglent SDG1062X function generator has a bandwidth of 60MHz.

The new SDG1000X series dual-channel function/arbitrary waveform generators offer a high bandwidth and broad amplitude ranges. The vertical resolution and EasyPulse technique offer high accuracy in the output wave. The devices are capable of generating low jitter, high fidelity waveforms up to high frequencies.

The EasyPulse technology offers a solution for a problem common in DDS generators when generating square waves. If the frequency of the signal is not an integer multiple of the clock frequency a jitter occurs in the signal, resulting in an impure signal. EasyPulse solves this problem by eliminating the jitter. The generators support both sinusoidal and square wave signals up to the bandwidth, which is not common in function generators.The SDG1000x function generators are also equipped with True ARB technology.

True Arb With TrueArb, the function generator generates a signal point by point. This allows each data point to be treated individually, reducing the jitter and error rate. This provides a very good representation of the stored waveform. Models ModelSDG1032XSDG1062X Bandwidth30 MHz60 MHz Price 289 €289.00 Excl. VAT 369 €369.00 Excl. VAT Specifications Channels2 Max amplitude20 Vpp Sample rate150 MSa/s Vertical resolution14 bits Waveform length16 kpts Frequency resolution1 &mu,Hz Square wave properties&lt, 300 ps+0.05 ppm jitter ModulationAM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM ConnectivityUSB (Host/Device), LAN, (GPIB optionally) Display4.3′ TFT-LCD

For more information the datasheet and manual listed below can be consulted. Options SPA1010 power amplifier 10W Power amplifier for SIGLENT function/arbitrary waveform generators. SPA1010 power amplifier 10W 359 €359.00 Excl. VAT Info Add to Cart USB to GPIB With this option, you can can control the function generator through GPIB. USB-GPIB 123 €123.00 Excl. VAT Info Add to Cart Accessories

The Siglent SDG1062X function generator comes with the following accessories:

  • Warranty card
  • Power cord
  • USB cable
  • Quick start guide

Технические характеристики
