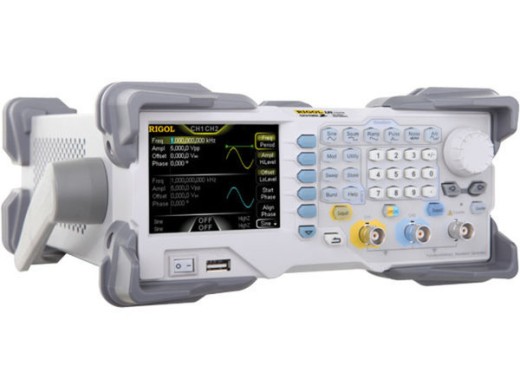

The Rigol DG1062Z function generator is the 60Hz model in the DG1000Z series of 2 channel function generators. The DG1000Z models are multifunctional and widely applicable. Several standard functions are built in. In addition to arbitrary functions, these generators can also generate pulses, noise and harmonics. The harmonics generator can generate up to 8th order signals. Standard there are 160 waveforms built in. With a 1 ppm frequency stability and only -125 dBc/Hz deviation, these generators are very precise.
For arbitrary functions the DG1000Z have a memory of 8 Mpts which can optionally be extended to 16 Mpts. These function generators are easy to set up using the 3.5′ TFT colour screen and the simple control panel. Furthermore, the function generators can be programmed via a USB or LAN connection using the Ultra Sigma software.
Models
The difference between the three models is in the bandwidth:
ModelBandwidthSample RatePrice DG1032Z30 MHz200 MS/s 454.55 €454.55 Excl. VAT DG1062Z60 MHz200 MS/s 582.64 €582.64 Excl. VAT Specifications Frequentie
DG1032Z SinusBlokgolfPulsRampRuisArbitrair 1μHz ~ 30MHz1μHz ~ 15MHz1μHz ~ 15MHz1μHz ~ 500KHz30Mhz1μHz ~ 10MHz Frequentie
DG1062Z SinusBlokgolfPulsRampRuisArbitrair 1μHz ~ 60MHz1μHz ~ 25MHz1μHz ~ 25MHz1μHz ~ 1MHz60Mhz1μHz ~ 20MHz Channels2 Precision± 1 ppm Rise/Fall time<, 10 ns (1 Vpp) Function length8 pts up to 2 Mpts, (16 Mpts optional) Vertical resolution14 bits Built-in arbitrary functions160, including Sinc, Gauss, HaverSine, Lorentz ModulationAM, FM, PM, ASK, FSK, PSK, PWM Display3.5′ TFT LCD (320 x 240), 16 M colors Dimensions261.5 mm x 112 mm x 318.4 mm (wxhxd) Weight3.2 kg Accessories
The DG1000Z function generators are supplied with:
- Power cord
- USB cable
- BNC cable
- CD with resources
Download here the guide of these products.
