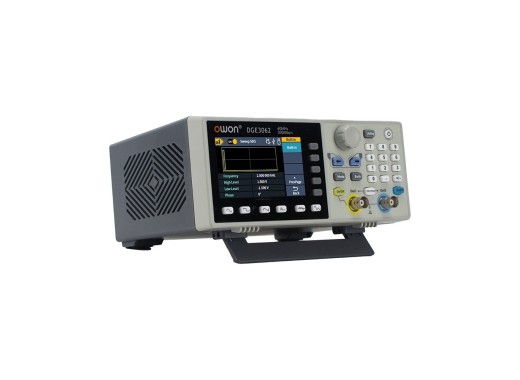

The DGE3062 from Owon is a 14 bit function generator with a bandwith of 60MHz. This function generator comes with 5 basic waveforms, 160 built-in arbitrary waveforms and has 16 digital arbitrary waveform storage functions. It includes a frequency counter with a frequency range of 100mHz-200MHz. Furthermore the DGE3062 has comprehensive modulation functions such as: AM, FM, PM, PWM, FSK, Sweep, Burst and more. The DGE3062 also has external modulation and external trigger input and it has an external reference clock for the input and output.
With the free PC software it is possible to draw your own waveforms and save them on the function generator. The function generator is easy to operate and is very compact.
Model overview We offer multiple function generators from Owon in the DGE2000 and DGE3000 series, which differ in the bandwidth, sample rate, frequency resolution and waveform length: Model DGE2035 DGE2070 DGE3030 DGE3062 Bandwidth 35 MHz 70 MHz 30 MHz 60 MHz Sample rate 125 MSa/s 300 MSa/s 125 MSa/s 300 MSa/s Frequency resolution 1 &mu,Hz or 7 digits 1 &mu,Hz or 7 digits 6 digits 6 digits Waveform length 8 kpts 8 kpts 100 kpts 100 kpts Frequency counter Not available Not available 100 mHz — 200 MHz 100 mHz — 200 MHz Price 131.4 €131.40 Excl. VAT 156.2 €156.20 Excl. VAT 161.16 €161.16 Excl. VAT 185.95 €185.95 Excl. VAT Specifications Channels2 Vertical resolution14 bits Amplitude range2 mVpp — 10 Vpp ModulationAM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSB-AM, QPSK, SUM, Sweep, Burst Built-in functionsSine, Square, Pulse, Ramp, Noise Output impedance50 Interfaces USB host/device Display 3.6′ TFT LCD (480×272) Dimensions200 x 92 x 157 mm Weight0.8 kg Accessories The Owon DGE3062 comes with:
- BNC to alligator clip
- Q9 cable
- USB cable
- Power cable
