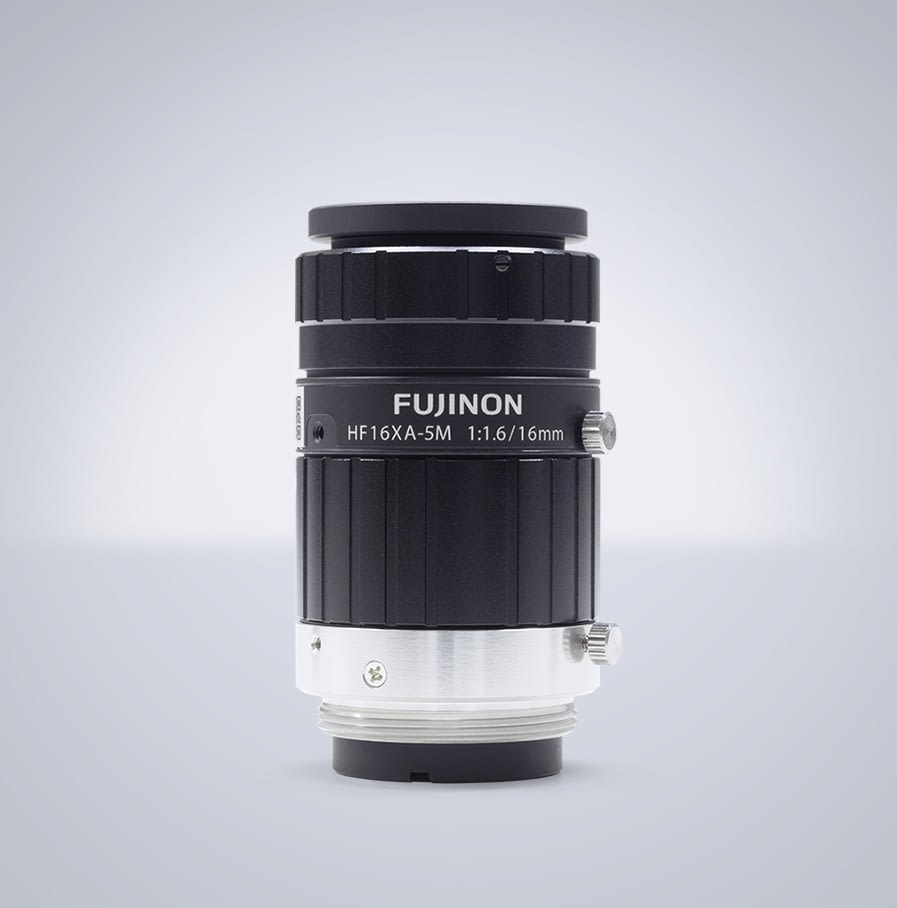

| Manufacturer Model # | Fujinon HF16XA-5M |
|---|---|
| LUCID SKU | FC160-5M |
| Focal Length | 16mm |
| Iris Range (f no.) | f1.6 f16 |
| Angle of View (H x V) * * Mounted to 2/3” sensor cameras | 31.4° x 23.7° |
| Focus Range (from front of the lens) | ∞-100mm |
| Operation of Focus | Manual |
| Operation of Iris | Manual |
| Filter Thread | M25.5 x 0.5mm |
|---|---|
| Mount | C-Mount |
| Sensor Size (max.) | 2/3” |
| TV Distortion | -0.60% |
| Diameter | φ29.5 x 46.0mm |
| Weight | 71g |
| Fixing Knobs Bundled | 2 |
