Description

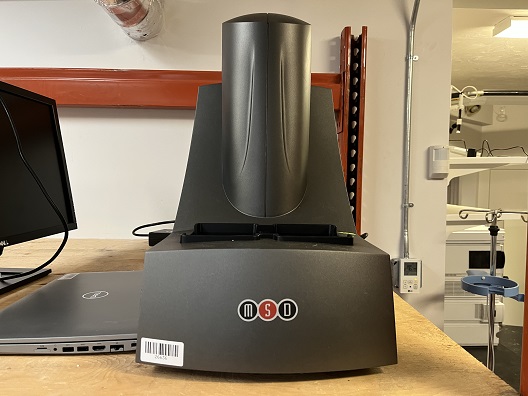

The MESO QuickPlex SQ 120MM (with Methodical Mind software) is MSD»s most versatile instrument. This compact system has been engineered for reliability, ease of use, and low cost of ownership. The combination of rapid read times and the ability to perform multiple, simultaneous tests on a single sample increases productivity, saves sample, and delivers results quickly.
Specifications:
• Detection Technology: Electrochemiluminescence (ECL)
• Detection System: Cooled scientific-grade CCD camera and precision custom lens assembly
• Multiplexing Capability: Up to 10 assays/well
• Plate Compatibility
• Sensitivity: Limits of detection as low as 0.05 to 1 pg/mL for many assays
• Dynamic Range: MSD 96-well SECTOR plates, MSD QuickPlex plates
• Plate Stacker Capability: 5 plates input stack / 5 plates output stack
• Weight: 44.5 lb (20.2 kg)
• Size (W x D x H): 13 in x 23 in x 21 in (33 cm x 58 cm x 53 cm)
• Power: 100–240 VAC, 50–60 Hz, 155 W max
