Product Information

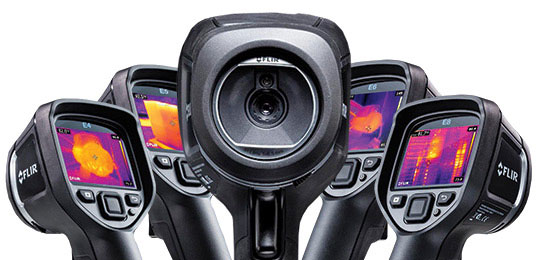

FLIR E4, E5, E6, E8 with MSX® Enhancement
- Display: 3” color LCD
- On-board 640 x 480 Digital Camera
- Easy-to-use, weighs only 1.2lbs
- 2% accuracy
- File format: Radiometric jpg
- Swappable Li-ion Battery with 4 hour life
- Spot Measurement mode
- Simultaneous storage of IR/Visual/MSX images
- Picture in Picture image (E6 and E8)
- Manual level and span thermal tuning (E6 and E8)
- Area Box Measurement mode (E5, E6 and E8)
Each includes power supply/charger with four plugs, rechargeable battery, FLIR Tools software, USB cable, and hard transport case. E8 also includes extra battery and external battery charger.
FLIR E4
- 4,800 pixels (80 x 60)
FLIR E5
- 10,800 pixels (120 x 90)
FLIR E6
- 19,200 pixels (160 x 120)
FLIR E8
- 76,800 pixels (320 x 240)
MSX® Thermal Image Enhancement
MSX adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one thermal picture with numbers, labels, and other structural features intact so you’ll instantly recognize where the heat issue is.
Additional E4, E5, E6 & E8 Features:
- FLIR Tools reporting and analysis software included
- 2-5-10 FLIR Warranty
- Temperature range from -4°F to 482°F (-20°C to 250°C)
- Variable emissivity and reflected temperature parameters for detection accuracy
