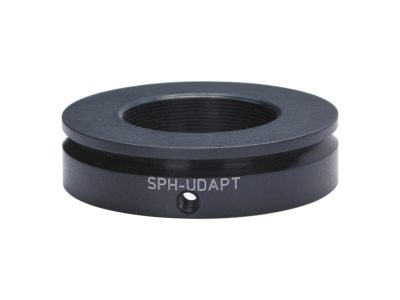

The SPH-UDAPT Adapter allows the 1 inch port of the 819C/D series integrating spheres to be connected to Oriels standard 1.5 inch female flange and the 1 inch Lens Tube components. The outside of the adapter is Oriels male flange adapter, while the inside is also threaded with the standard 1.035-40 thread, to be compatible with the Lens Tube mounting systems. The set screw size is 6-32 X 3/16 inch.
Технические характеристики
- Type Port Flange Adapter
- Thread Type 1.035-40
- Detector Type 819C & 819D Series
- Port Size 1.0 in.
- Flange Type 1.5 inch Series — Male
- Material Black anodized aluminum
