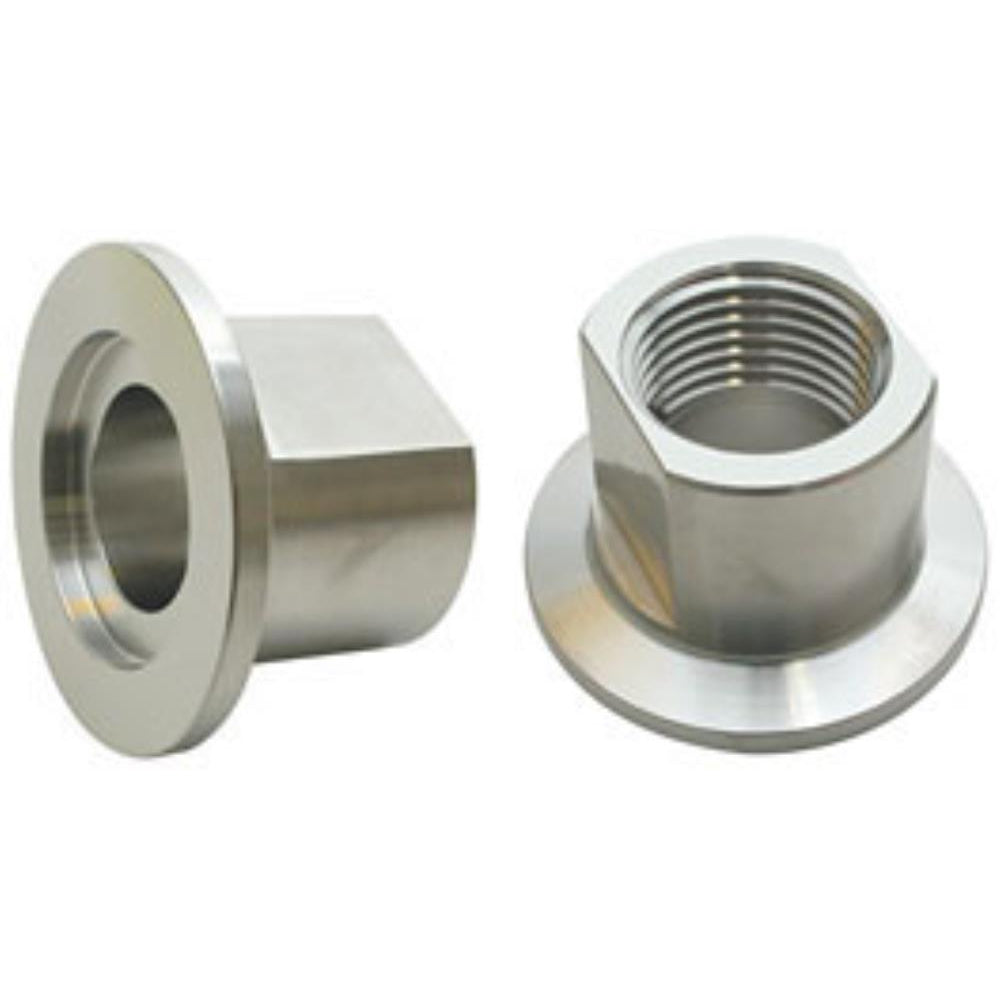

The NW/KF flange adapters to female NPT thread are used to connect pipes, systems and thermocouples 3.17mm with NPT thread to NW/KF flange system. Made using aluminium. Commonly used to connect filters with NPT thread on adapters on the exhaust port of rotary vane pumps. Use Apiezon AP101 anti-seize vacuum grease as a sealant and to prevent seizing. Please note that NPT (National Pipe Thread) does not refer to the outside diameter of the thread.
These NW/KF Flanges with 3,.8mm thread can be used with the P-100 Pirani Gauge to connect the P-100 Gauge to pumps and systems with standard NW/KF/QF flanges.
Aluminium flange adapter specifications:
Product NPT Size Dimensions
NW/KF16 Adapter
VNPTF-KF16-03AL
3.18mm A=16mm, B=19mm
VNPTF-KF16-06AL
6.35mm A=16mm, B=19mm
NW/KF25 Adapter
VNPTF-KF25-03AL
3.18mm A=23mm, B=19mm
VNPTF-KF25-06AL
6.35mm A=23mm, B=19mm
NW/KF40 Adapter
VNPTF-KF40-03AL
3.18mm A=32mm, B=25mm
VNPTF-KF40-06AL
6.35mm A=32mm, B=25mm
NW/KF50 Adapter VNPTF-KF50-03AL
3.18mm
A=45mm, B=25mm
VNPTF-KF50-06AL
6.35mm
A=45mm, B=25mm
National Pipe Thread Taper
