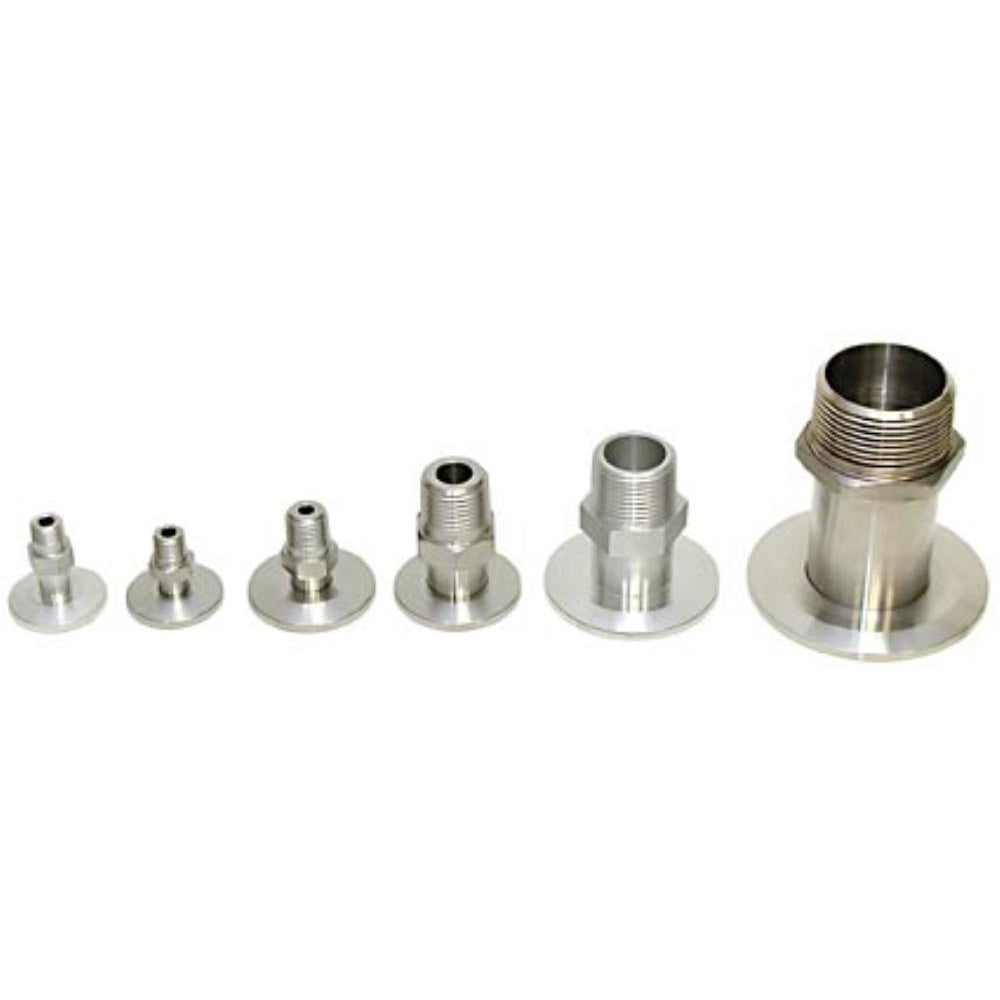

The NW/KF flange adapters to male NPT thread used to connect pipes and systems with NPT thread to NW/KF flange system. Aluminium adaptors are made from one piece. Use OC Three as a sealant and to prevent seising. Please note that NPT (National Pipe Thread) does not refer to the outside diameter of the thread.
Aluminium flange adapter specifications:
Product NPT Size Dimensions
NW/KF16 Adapter
VNPTM-KF16-03AL
3.18mm A=32mm
VNPTM-KF16-06AL
6.35mm A=32mm
NW/KF25 Adapter
VNPTM-KF25-03AL
3.18mm A=26mm
VNPTM-KF25-06AL
6.35mm A=32mm
VNPTM-KF25-12AL
12.7mm A=38mm
VNPTM-KF25-19AL
19mm A=51mm
NW/KF40 Adapter
VNPTM-KF40-03AL
3.18mm A=26mm
VNPTM-KF40-06AL
6.35mm A=32mm
VNPTM-KF40-12AL
12.7mm A=38mm
VNPTM-KF40-19AL
19mm A=51mm
NW/KF50 Adapter VNPTM-KF50-03AL
3.18mm
A=32mm
VNPTM-KF50-06AL
6.35mm A=32mm
VNPTM-KF50-12AL
12.7mm
A=38mm
VNPTM-KF50-19AL
19mm
A=51mm
VNPTM-KF50-25AL
25.4mm A=51mm
VNPTM-KF50-32AL
31.75mm
A=65mm
VNPTM-KF50-38AL
38.1mm
A=65mm
VNPTM-KF50-51AL
50.8mm A=65mm
National Pipe Thread Taper
