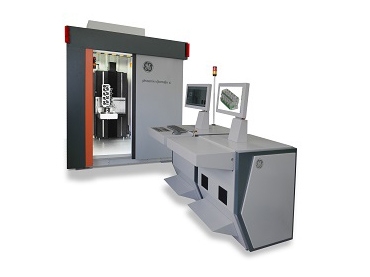

Product Information
Key Features:
- Unique open nanofocus-microfocus dual tube combination possible (180 kV / 15 W high-power nanofocus X-ray tube and 240 kV / 320 W microfocus tube)
- Up to 10 times increased filament lifetime, ensuring long-term stability and optimizing system efficiency by long-life|filament (optionally)
- Up to 2 times faster data acquisition at the same high image quality level by diamond|window (optionally)
- Fast CT acquisition and brilliant live images by high dynamic temperature-stabilized GE DXR digital detector with 30 fps (frames per second) (optionally)
Customer Benefits:
- 3D Metrology package for dimensional measuring with extremely high precision, reproducibility and user-friendliness
- Automated generation of first article inspection reports in <, 1 hour possible
- Excellent software modules for extremely high CT quality and ease of use, e.g.:
- High precision and reproducible 3D metrology by click & measure|CT with phoenix datos|x CT software: fully automated execution of CT scan, reconstruction and analysis process
- Accelerated 3D CT reconstruction results within a few seconds or minutes (depending of the volume size) by velo|CT
