| Manufacturer # | |
| PCI Express | - PCI Express Gen3 or Gen2, (Supports line rates of 8.0 GT/s and 5.0 GT/s per lane)
- Bus width: Supports Gen3 x4 or Gen2 x4
- MSI, MSI-X, and legacy INTx PCIe interrupts, Improved CPU utilization and network performance
|
| MAC | - Large Send Offload (LSO), Receive-Side Scaling (RSS), Direct Cache Access (DCA) header checksum
- WoL power management
- On-chip CPU DASH
- MACsec
- Quality of Service (QOS) support
- Jumbo frames (up to 16Kbytes)
- IPv4, IPv6/TCP and IPv6/UDP checksum offload
|
| PHY | - Integrated Aquantia AQrate PHY featuring NBASE-T technology
- 100 meters over Cat 6a at 10Gbps
- 100 meters over Cat 5e and Cat 6a at 5Gbps/ 2.5Gbps/ 1Gbps/ 100Mbps
- Advanced cable diagnostics with On-chip high resolution cable analyzer
- Audio Video Bridging (AVB) and 1588v2
- EEE support
- Supported Data Rates: 10G/ 5G/ 2.5G/ 1G/ 100 Mbps
- Standard compliance: IEEE 802.3bz – NBASE-T, IEEE 802.3x – flow control, IEEE 802.1P – quality of service, IEEE 802.1QAV – AVB
|

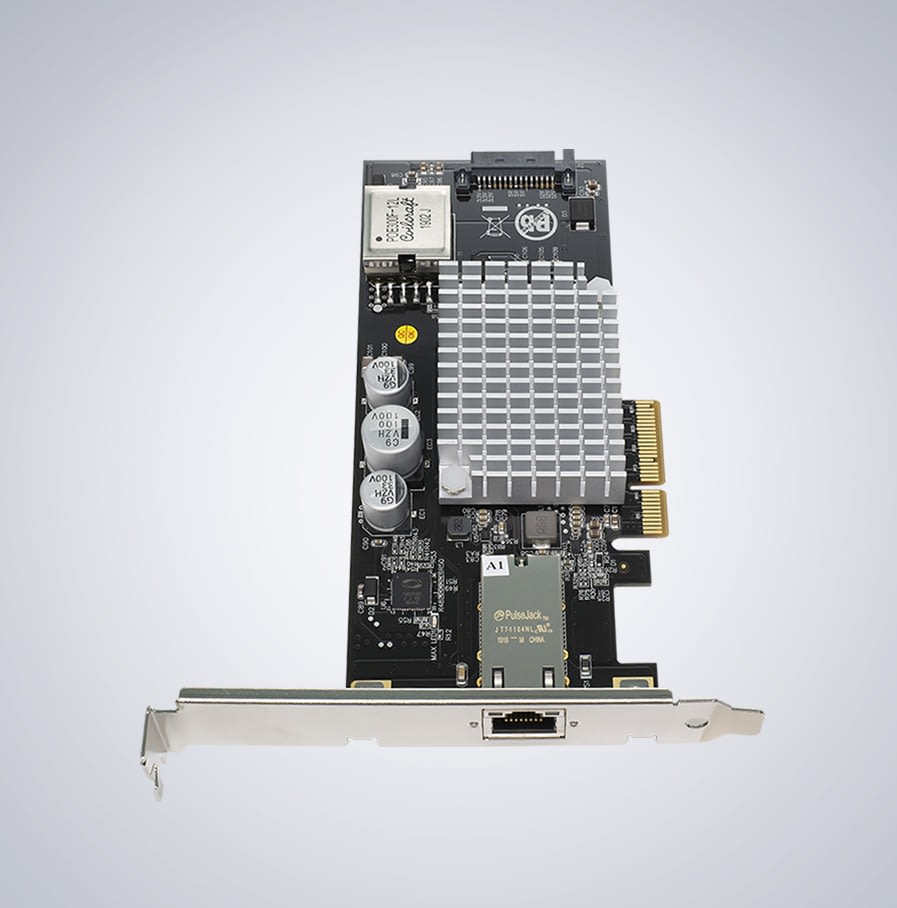

| Number of Port | - One 10GBASE-T RJ45 Ethernet port with Screw Holes for thumbscrew locking Type Ethernet Cable
|
