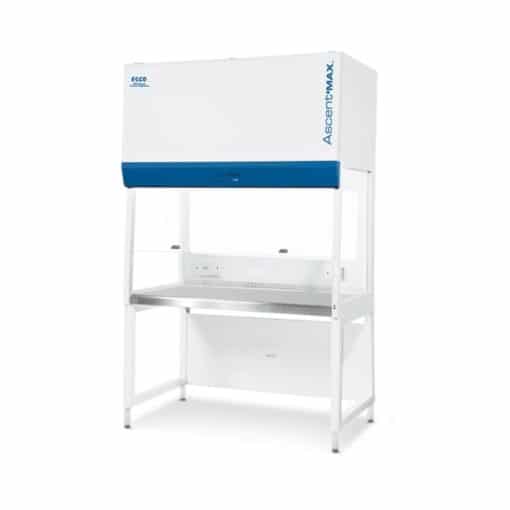

Product Description Esco Ascent Max (ADC) Ductless Fume Hoods provides operator and environment protection by filtering out chemical fumes and recycling clean air directly back to the laboratory. Unlike conventional fume hoods, these hoods provide energy savings, mobility and convenience as you do not have to deal with complicated ducting systems. The ADC-E series, is equipped with a main carbon filter and a secondary HEPA filter located at the exhaust. This unit is suitable for cleanroom applications and for handling chemicals in powdered/ solid form. Features Grade 304 stainless steel work top surface that will never rust, chip or generate particles. Electrogalvanized steel wall for maximum durability Lip at the front edge of work surface ensures that any spillage is contained in the work zone. Sentinel microprocessor control system with audible and visual alarms for unsafe conditions. Front service panel opens up easily for maintenance functions Optional VOC sensor to monitor chemical concentration within the cabinet work zone. All cabinet service and filter replacement can be carried out from the front, allowing the cabinet to be placed against wall in the laboratory to save space. Over 8 different Nanocarb filter types to choose from: Volatile organic compounds, acid, mercury, sulfur, halogen, aldehyde, ammonia or ethers/chloroform. #col-624139279 > .col-inner { margin: 0px 0px -16px 0px, } #image_179407612 { width: 57%, } Robust Hood Construction Key components including Fluorescent Lamps, Motor Capacitor, Electrical parts, and Switch Control are mounted outside the airstream and away from contaminated areas to permit easy service. Centrifugal Fan Permanently lubricated fans are energy-efficient with external rotor motor design that reduces operating costs. Extremely low noise and low vibration level Filtration System Main Filter: Nanocarb Activated carbon, available in 8 types Efficient perimeter clamping ensures no leakage as well as allows easy filter change procedure. Technical Specifications Guide to Models (Ascent Max Series) ADC 4 E 1 External Width Code Model Code Electrical Code 28.7 (2ft.) 2* ADC-B-standard model B 220-240 VAC , 50 Hz 1 40.7 (3ft.) 3 ADC-C-has a secondary carbon filter C 110-220 VAC , 60 Hz 2 52.8 (4ft.) 4 ADC-D-standard model + Transparent Back wall D 220-240 VAC , 60 Hz 3 64.8 (5ft.) 5 ADC-E- has a secondary HEPA filter E 76.8 (6ft.) 6 *2 ft. fume hood is only available for ADC-B models. ADC-_B/C/D/E_-PP with Swan neck faucet and PP sink provision Model 220-240 VAC, 50 Hz ADC-3E1 ADC-4E1 ADC-5E1 ADC-3E1-PP ADC-4E1-PP ADC-5E1-PP 110-120 VAC, 60 Hz ADC-3E2 ADC-4E2 ADC-5E2 ADC-3E2-PP ADC-4E2-PP ADC-5E2-PP 220-240 VAC, 60 Hz ADC-3E3 ADC-4E3 ADC-5E3 ADC-3E3-PP ADC-4E3-PP ADC-5E3-PP Nominal Size 0.9 meter (3) 1.2 meter (4) 1.5 meter (5) External Dimensions ( W x D x H) 1035 x 736 x 1455 mm 40.7 x 29.0 x 57.3 1340 x 736 x 1455 mm 52.8 x 29.0 x 57.3 1645 x 736 x 1455 mm 64.8 x 29.0 x 57.3 Internal work area ( W x D x H) 965 x 596 x 765 mm 1268 x 596 x 765 mm 1575 x 596 x 765 mm 38.0 x 23.5 x 30.1 50.0 x 23.5 x 30.1 62.0 x 23.5 x 30.1 Airflow Velocity (inflow) 0.4 m/s
Технические характеристики
Technical Specifications
| Guide to Models (Ascent Max Series) | |||||
| ADC — 4 E 1 | |||||
| External Width | Code | Model | Code | Electrical | Code |
| 28.7′ (2ft.) | 2* | ADC-B-standard model | B | 220-240 VAC , 50 Hz | 1 |
| 40.7′ (3ft.) | 3 | ADC-C-has a secondary carbon filter | C | 110-220 VAC , 60 Hz | 2 |
| 52.8′ (4ft.) | 4 | ADC-D-standard model + Transparent Back wall | D | 220-240 VAC , 60 Hz | 3 |
| 64.8′ (5ft.) | 5 | ADC-E- has a secondary HEPA filter | E | ||
| 76.8′ (6ft.) | 6 |
*2 ft. fume hood is only available for ADC-B models.
ADC-_B/C/D/E_-PP –with Swan neck faucet and PP sink provision
| Model | 220-240 VAC, 50 Hz | ADC-3E1 | ADC-4E1 | ADC-5E1 |
| ADC-3E1-PP | ADC-4E1-PP | ADC-5E1-PP | ||
| 110-120 VAC, 60 Hz | ADC-3E2 | ADC-4E2 | ADC-5E2 | |
| ADC-3E2-PP | ADC-4E2-PP | ADC-5E2-PP | ||
| 220-240 VAC, 60 Hz | ADC-3E3 | ADC-4E3 | ADC-5E3 | |
| ADC-3E3-PP | ADC-4E3-PP | ADC-5E3-PP | ||
| Nominal Size | 0.9 meter (3′) | 1.2 meter (4′) | 1.5 meter (5′) | |
| External Dimensions ( W x D x H) | 1035 x 736 x 1455 mm 40.7” x 29.0” x 57.3” | 1340 x 736 x 1455 mm 52.8” x 29.0” x 57.3” | 1645 x 736 x 1455 mm 64.8” x 29.0” x 57.3” | |
| Internal work area ( W x D x H) | 965 x 596 x 765 mm | 1268 x 596 x 765 mm | 1575 x 596 x 765 mm | |
| 38.0” x 23.5” x 30.1” | 50.0” x 23.5” x 30.1” | 62.0” x 23.5” x 30.1” | ||
| Airflow Velocity (inflow) | 0.4 m/s |
