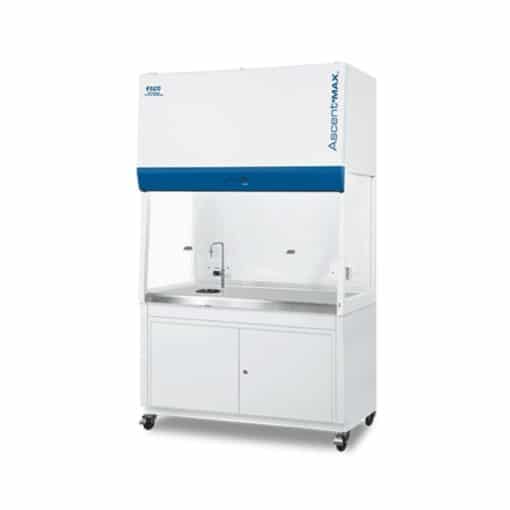

Product Description Esco Ascent Max (ADC) Ductless Fume Hood utilizes a carbon filtration system to remove toxic chemical fumes and recycle clean air back to the laboratory. This airflow principle provides operator and environment protection. Ductless fume hoods are becoming a viable alternative to ducted fume hoods as no extraction systems are required, and its plug-and-play feature prevents any downtime in the laboratory. Esco ductless fume hoods also offer energy savings, convenience, and mobility. Esco Ascent Max-C Series (ADC-C) has a secondary carbon exhaust filter that offers a higher filtration efficiency against toxic chemical fumes. This model can handle a broader range of chemicals and it offers a dual layer of protection that can lengthen the filter change interval. Features Grade 304 stainless steel work top surface that will never rust, chip or generate particles. Electrogalvanized steel wall for maximum durability Lip at the front edge of work surface ensures that any spillage is contained in the work zone. Sentinel microprocessor control system with audible and visual alarms for unsafe conditions. Front service panel opens up easily for maintenance functions Optional VOC sensor to monitor chemical concentration within the cabinet work zone. All cabinet service and filter replacement can be carried out from the front, allowing the cabinet to be placed against wall in the laboratory to save space. Over 8 different Nanocarb filter types to choose from: Volatile organic compounds, acid, mercury, sulfur, halogen, aldehyde, ammonia or ethers/chloroform. Technical Specifications Guide to Models (Ascent Max Series) ADC 4 C 1 External Width Code Model Code Electrical Code 28.7 (2ft.) 2* ADC-B-standard model B 220-240 VAC , 50 Hz 1 40.7 (3ft.) 3 ADC-C-has a secondary carbon filter C 110-220 VAC , 60 Hz 2 52.8 (4ft.) 4 ADC-D-standard model + Transparent Back wall D 220-240 VAC , 60 Hz 3 64.8 (5ft.) 5 ADC-E- has a secondary HEPA filter E 76.8 (6ft.) 6 *2 ft. fume hood is only available for ADC-B models. ADC-_B/C/D/E_-PP with Swan neck faucet and PP sink provision Model 220-240 VAC, 50 Hz ADC-3C1 ADC-4C1 ADC-5C1 ADC-6C1 ADC-3C1-PP ADC-4C1-PP ADC-5C1-PP ADC-6C1-PP 110-120 VAC, 60 Hz ADC-3C2 ADC-4C2 ADC-5C2 ADC-6C2 ADC-3C2-PP ADC-4C2-PP ADC-5C2-PP ADC-6C2-PP 220-240 VAC, 60 Hz ADC-3C3 ADC-4C3 ADC-5C3 ADC-6C3 ADC-3C3-PP ADC-4C3-PP ADC-5C3-PP ADC-6C3-PP Nominal Size 0.9 meter (3) 1.2 meter (4) 1.5 meter (5) 1.8 meter (6) External Dimensions ( W x D x H) 1035 x 736 x 1455 mm 40.7 x 29.0 x 57.3 1340 x 736 x 1455 mm 52.8 x 29.0 x 57.3 1645 x 736 x 1455 mm 64.8 x 29.0 x 57.3 1950 x 736 x 1455 mm 76.8 x 29.0 x 57.3 Internal work area ( W x D x H) 965 x 596 x 765 mm 1268 x 596 x 765 mm 1575 x 596 x 765 mm 1880 x 596 x 765 mm 38.0 x 23.5 x 30.1 50.0 x 23.5 x 30.1 62.0 x 23.5 x 30.1 74.0 x 23.5 x 30.1 Airflow velocity (inflow) 0.4 m/s
Технические характеристики
Technical Specifications
| Guide to Models (Ascent Max Series) | |||||
| ADC — 4 C 1 | |||||
| External Width | Code | Model | Code | Electrical | Code |
| 28.7′ (2ft.) | 2* | ADC-B-standard model | B | 220-240 VAC , 50 Hz | 1 |
| 40.7′ (3ft.) | 3 | ADC-C-has a secondary carbon filter | C | 110-220 VAC , 60 Hz | 2 |
| 52.8′ (4ft.) | 4 | ADC-D-standard model + Transparent Back wall | D | 220-240 VAC , 60 Hz | 3 |
| 64.8′ (5ft.) | 5 | ADC-E- has a secondary HEPA filter | E | ||
| 76.8′ (6ft.) | 6 |
*2 ft. fume hood is only available for ADC-B models.
ADC-_B/C/D/E_-PP –with Swan neck faucet and PP sink provision
| Model | 220-240 VAC, 50 Hz | ADC-3C1 | ADC-4C1 | ADC-5C1 | ADC-6C1 |
| ADC-3C1-PP | ADC-4C1-PP | ADC-5C1-PP | ADC-6C1-PP | ||
| 110-120 VAC, 60 Hz | ADC-3C2 | ADC-4C2 | ADC-5C2 | ADC-6C2 | |
| ADC-3C2-PP | ADC-4C2-PP | ADC-5C2-PP | ADC-6C2-PP | ||
| 220-240 VAC, 60 Hz | ADC-3C3 | ADC-4C3 | ADC-5C3 | ADC-6C3 | |
| ADC-3C3-PP | ADC-4C3-PP | ADC-5C3-PP | ADC-6C3-PP | ||
| Nominal Size | 0.9 meter (3′) | 1.2 meter (4′) | 1.5 meter (5′) | 1.8 meter (6′) | |
| External Dimensions ( W x D x H) | 1035 x 736 x 1455 mm 40.7” x 29.0” x 57.3” | 1340 x 736 x 1455 mm 52.8” x 29.0” x 57.3” | 1645 x 736 x 1455 mm 64.8” x 29.0” x 57.3” | 1950 x 736 x 1455 mm 76.8” x 29.0” x 57.3” | |
| Internal work area ( W x D x H) | 965 x 596 x 765 mm | 1268 x 596 x 765 mm | 1575 x 596 x 765 mm | 1880 x 596 x 765 mm | |
| 38.0” x 23.5” x 30.1” | 50.0” x 23.5” x 30.1” | 62.0” x 23.5” x 30.1” | 74.0” x 23.5” x 30.1” | ||
| Airflow velocity (inflow) | 0.4 m/s |
