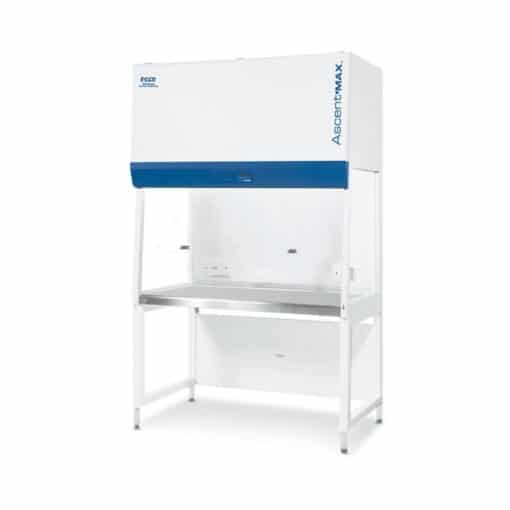

Product Description Esco Ascent Max (ADC) Ductless Fume Hood utilizes a carbon filtration system to remove toxic chemical fumes and recycle clean air back to the laboratory. This airflow principle provides operator and environment protection. Ductless fume hoods are becoming a viable alternative to ducted fume hoods as no extraction systems are required, and its plug-and-play feature prevents any downtime in the laboratory. Esco ductless fume hoods also offer energy savings, convenience, and mobility. Esco Ascent Max-B Series (ADC-B) is the standard ductless fume hood model. This unit is equipped with a main carbon filter and is used for general applications such as dilution, mixing, buffer preparation, etc. Features Robust Hood Construction Key components including Fluorescent Lamps, Motor Capacitor, Electrical parts, and Switch Control are mounted outside the airstream and away from contaminated areas to permit easy service. Centrifugal Fan Permanently lubricated fans are energy-efficient with external rotor motor design that reduces operating costs. Extremely low noise and low vibration level Filtration System Main Filter: Nanocarb Activated carbon, available in 8 types Efficient perimeter clamping ensures no leakage as well as allows easy filter change procedure. Optional VOC Sensor Detects presence of volatile organic compounds in the exhaust and alarms to indicate filter saturation Worktop Options Standard SS steel worktop can be upgraded to phenolic resin or epoxy for better chemical resistance Technical Specifications Guide to Models (Ascent Max Series) ADC 4 B 1 External Width Code Model Code Electrical Code 28.7 (2ft.) 2* ADC-B-standard model B 220-240 VAC , 50 Hz 1 40.7 (3ft.) 3 ADC-C-has a secondary carbon filter C 110-220 VAC , 60 Hz 2 52.8 (4ft.) 4 ADC-D-standard model + Transparent Back wall D 220-240 VAC , 60 Hz 3 64.8 (5ft.) 5 ADC-E- has a secondary HEPA filter E 76.8 (6ft.) 6 *2 ft. fume hood is only available for ADC-B models. ADC-_B_-M with motorized sash ADC-_B/C/D/E_-PP with Swan neck faucet and PP sink provision Model 220-240 VAC, 50 Hz ADC-2B1 ADC-3B1 ADC-4B1 ADC-5B1-M ADC-6B1 ADC-2B1-PP ADC-3B1-PP ADC-4B1-PP ADC-5B1-PP ADC-6B1-PP ADC-2B1-M ADC-3B1-M ADC-4B1-M ADC-5D1-M ADC-6B1-M 110-120 VAC, 60 Hz ADC-2B2 ADC-3B2 ADC-4B2 ADC-5B2 ADC-6B2 ADC-2B2-PP ADC-3B2-PP ADC-4B2-PP ADC-5B2-PP ADC-6B2-PP ADC-2B2-M ADC-3D2-M ADC-4B2-M ADC-5B2-M ADC-6B2-M 220-240 VAC, 60 Hz ADC-2B3 ADC-3B3 ADC-4B3 ADC-5B3 ADC-6B3 ADC-2B3-PP ADC-3B3-PP ADC-4B3-PP ADC-5B3-PP ADC-6B3-PP ADC-2B3-M ADC-3B3-M ADC-4B3-M ADC-5B3-M ADC-6B3-M Nominal Size 0.6 meter (2) 0.9 meter (3) 1.2 meter (4) 1.5 meter (5) 1.8 meter (6) External Dimensions ( W x D x H) 730 x 736 x 1455 mm 28.7 x 29.0 x 57.3 1035 x 736 x 1455 mm 40.7 x 29.0 x 57.3 1340 x 736 x 1455 mm 52.8 x 29.0 x 57.3 1645 x 736 x 1455 mm 64.8 x 29.0 x 57.3 1950 x 736 x 1455 mm 76.8 x 29.0 x 57.3 Internal work area ( W x D x H) 660 x 596 x 765 mm 965 x 596 x 765 mm 1268 x 596 x 765 mm 1575 x 596 x 765 mm 1880 x 596 x 765 mm 26.0 x 23.5 x 30.1 38.0 x 23.5 x 30.1 50.0 x 23.5 x 30.1 62.0 x 23.5 x 30.1 74.0 x 23.5 x 30.1 Airflow velocity (inflow) 0.4 m/s
Технические характеристики
Technical Specifications
| Guide to Models (Ascent Max Series) | |||||
| ADC — 4 B 1 | |||||
| External Width | Code | Model | Code | Electrical | Code |
| 28.7′ (2ft.) | 2* | ADC-B-standard model | B | 220-240 VAC , 50 Hz | 1 |
| 40.7′ (3ft.) | 3 | ADC-C-has a secondary carbon filter | C | 110-220 VAC , 60 Hz | 2 |
| 52.8′ (4ft.) | 4 | ADC-D-standard model + Transparent Back wall | D | 220-240 VAC , 60 Hz | 3 |
| 64.8′ (5ft.) | 5 | ADC-E- has a secondary HEPA filter | E | ||
| 76.8′ (6ft.) | 6 |
*2 ft. fume hood is only available for ADC-B models.
ADC-_B_-M –with motorized sash
ADC-_B/C/D/E_-PP –with Swan neck faucet and PP sink provision
| Model | 220-240 VAC, 50 Hz | ADC-2B1 | ADC-3B1 | ADC-4B1 | ADC-5B1-M | ADC-6B1 |
| ADC-2B1-PP | ADC-3B1-PP | ADC-4B1-PP | ADC-5B1-PP | ADC-6B1-PP | ||
| ADC-2B1-M | ADC-3B1-M | ADC-4B1-M | ADC-5D1-M | ADC-6B1-M | ||
| 110-120 VAC, 60 Hz | ADC-2B2 | ADC-3B2 | ADC-4B2 | ADC-5B2 | ADC-6B2 | |
| ADC-2B2-PP | ADC-3B2-PP | ADC-4B2-PP | ADC-5B2-PP | ADC-6B2-PP | ||
| ADC-2B2-M | ADC-3D2-M | ADC-4B2-M | ADC-5B2-M | ADC-6B2-M | ||
| 220-240 VAC, 60 Hz | ADC-2B3 | ADC-3B3 | ADC-4B3 | ADC-5B3 | ADC-6B3 | |
| ADC-2B3-PP | ADC-3B3-PP | ADC-4B3-PP | ADC-5B3-PP | ADC-6B3-PP | ||
| ADC-2B3-M | ADC-3B3-M | ADC-4B3-M | ADC-5B3-M | ADC-6B3-M | ||
| Nominal Size | 0.6 meter (2′) | 0.9 meter (3′) | 1.2 meter (4′) | 1.5 meter (5′) | 1.8 meter (6′) | |
| External Dimensions ( W x D x H) | 730 x 736 x 1455 mm 28.7” x 29.0” x 57.3” | 1035 x 736 x 1455 mm 40.7” x 29.0” x 57.3” | 1340 x 736 x 1455 mm 52.8” x 29.0” x 57.3” | 1645 x 736 x 1455 mm 64.8” x 29.0” x 57.3” | 1950 x 736 x 1455 mm 76.8” x 29.0” x 57.3” | |
| Internal work area ( W x D x H) | 660 x 596 x 765 mm | 965 x 596 x 765 mm | 1268 x 596 x 765 mm | 1575 x 596 x 765 mm | 1880 x 596 x 765 mm | |
| 26.0” x 23.5” x 30.1” | 38.0” x 23.5” x 30.1” | 50.0” x 23.5” x 30.1” | 62.0” x 23.5” x 30.1” | 74.0” x 23.5” x 30.1” | ||
| Airflow velocity (inflow) | 0.4 m/s |
