Description
Features:

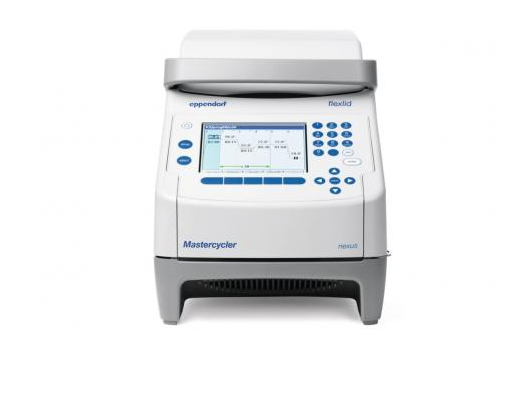

The Mastercycler nexus can accommodate 96-well PCR plates, 0.2 mL PCR tubes, 0.2 mL PCR tube strips and 0.5 mL PCR tubes. This flexibility allows PCR users to select the consumables that best fit their assay. With less than 40 dB[a] noise emission, the nexus is whisper quiet, while also being energy efficient.
Specifications:
• Dimensions (W x D x H): 25 x 41.2 x 32.1 cm
• Sample capacity: 96 x 0.2 mL PCR tubes, 1 PCR plate 8 x 12 or 38 x 0.5 mL PCR tubes
• Temperature control range of the block: 4 – 99 °C
• Heating technology: Peltier elements, Triple Circuit Technology
• Lid temperature range: 37 – 110 °C
• Block homogeneity 20–72 °C: ≤ ±0.3 °C
• Block homogeneity 90 °C: ≤ ±0.4 °C
• Block temperature accuracy: ±0.2 °C
• Heating rate: 3 °C/s 2
• Cooling rate: 2 °C/s 2
• Number of programs on device: >, 700
• Power supply: 110 V, 50 – 60 Hz
