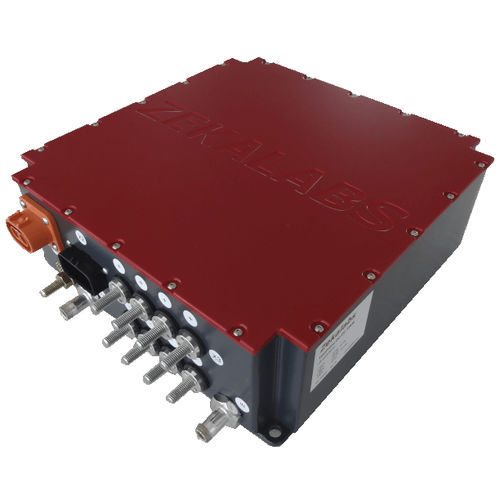

The unit is a bidirectional 15kW / 400A, water-cooled isolated DC-DC power converter for on-board integration in a hybrid or EV applications. Having numerous communication interfaces including RS485 (Modbus RTU) and CANBus, makes the integration with your control network an easy task. Providing various modes of operation, programmable limitations and additional logic integration possibilities, it can fulfill various tasks and functions. The device has a design with fully integrated control, power units and filter bank for minimizing the size and the weight of the installed components. It features an IP67 protection level. Using the ZekaTrace™ technology (optional, ordered separately), you will be able to display the electrical characteristics and diagnose the health of the system with an unprecedented resolution for the industry. Only one such converter in your design is enough to change the way you commission the whole application. This versatile, multi-application device provides various modes of operation, programmable limitations and additional logic integration possibilities and it can easily be used into the following applications: Electric and hybrid vehicles On-board power converter in electric/hybrid vehicles On-board battery/supercaps charger in electric/hybrid vehicles Hybrid/electrical propulsion and traction Battery / fuel-cells / supercaps charging and discharging
Технические характеристики
CharacteristicsConfigurationenclosedElectrical characteristicshigh-powerApplicationsvehicle, for multi-purpose applicationsOther characteristicsprogrammable, CANbus, RS485, Modbus, IP67, water-cooledInput voltage
Max.: 70 V
Min.: 0 V
Output voltage
Max.: 800 V
Min.: 600 V
Power
15,000 W
