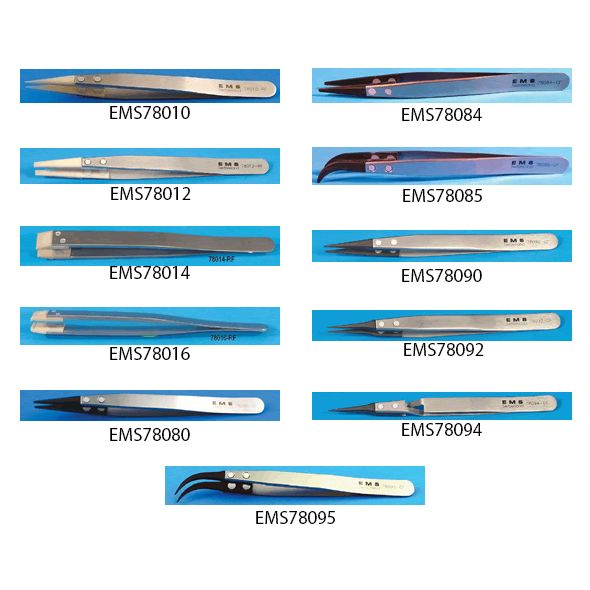

The handles are made from Antimagnetic Steel and Tips from Synthetic Fibre. Temperature Resistance: 375°F (190°C).
Synthetic Fibre:
High-performance Plastic type CP — PEEK/CF30
(Polyetheretherketone reinforced with 30 wt% carbon fibre)
- Very hard, high tensile and flexural strength.
- High heat (260 to 300°C) resistance to thermal aging.
- Excellent chemical resistance.
- ESD safe – low surface resistivity (102 Ohm).
Engineering Plastic type CF — PA66/CF30 (Polyamide 66 reinforced with 30 wt% carbon fibre)
- Heat stable (-40°C to 190°C).
- Rigidity, excellent tensile strength and flexural strength.
- Good chemical resistance (oils, greases, fuels, non-polar solvents), not resistant to strong acids, alkalis and hot water or steam.
- ESD safe, (avoids dust attraction, sparks, ignition sources).
- Good conductivity.
Non Conductive Plastic RF – PET/GF30 (Polyethylene terephtalate reinforced with 30 wt% glass fibre)
- High tensile and flexural strength.
- Good chemical resistance and low moisture absorption.
- Electrically insulation.
- High temperature capability.
- White in colour.
Style A B C Style 259 130mm 0.6mm 0.04mm Style 269 130mm 0.12mm 0.07mm Style 248 130mm 10mm 1.8mm Style 250 130mm 10mm 1.8mm Style OO 130mm 1.0mm 2.0mm Style 2A 130mm 1.8mm 1.0mm Style 2AB 130mm 1.8mm 1.0mm Style 3 130mm 0.8mm 0.05mm Style 5 130mm 0.5mm 0.6mm Style 5X 130mm 0.5mm 0.6mm Style 7 130mm 0.6mm 0.6mm
Технические характеристики
Style 259
