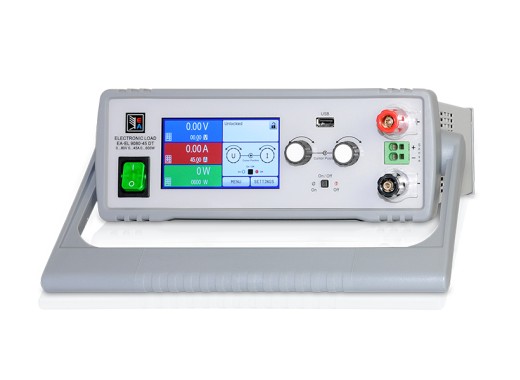

The Elektro-Automatik EA-EL 9080-45 DT is a compact desktop electronic load capable of accurately testing a power supply with 0-80V, 0-45A and 0,09-30Ω with a margin of
It features a color graphics display with TFT touch panel to control the unit. It can be interfaced with a LAN connection or USB type B for communication and a USB type A for data storage. For purposes of battery testing it can measure constant current or resistance discharging times, consumed capacity (Ah) and energy (Wh). The cooling fans are temperature controlled. Optional software allows for controlling up to 20 units at once.
Specifications Power600 W Input Voltage range0 — 80 V Input Current range0 — 45 A Resistance0.09 — 30 k Static modes CC, CP, CR, CV ProtectionOPP, OCP, OVP, OTP InterfacesLAN, USB, Analog Display TFT touch panel Dimensions276 x 103 x 415 mm Weight7 kg
