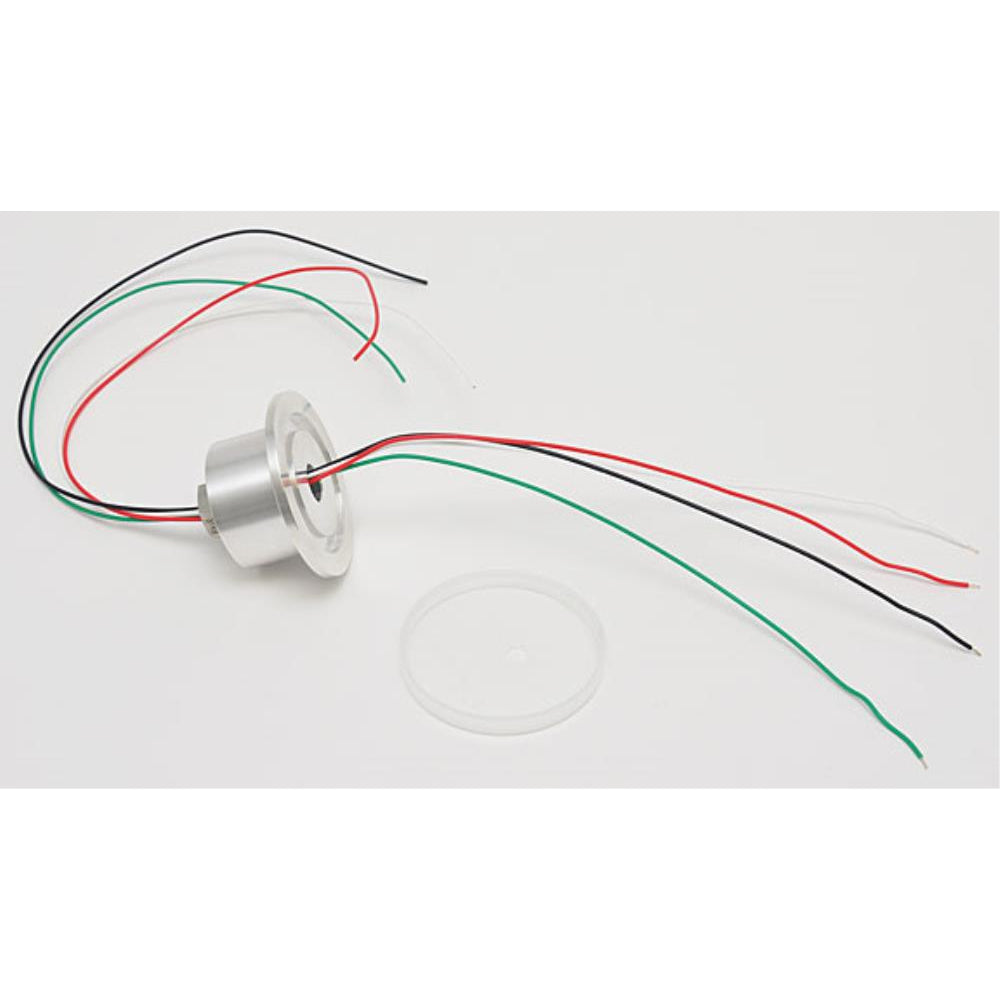

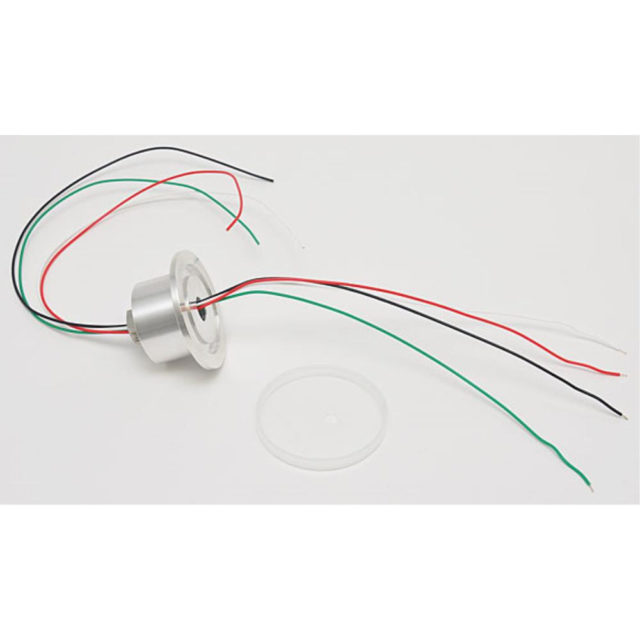

The NW/KF Electrical Feedthrough is a universal type feedthrough, which can be used either as high voltage or instrumentation feedthrough for devices in vacuum. The NW/KF Electrical Feedthrough has 4 wires and each wire is rated to a maximum of 1000V and 1A in vacuum. The wires are colour coded, white, black, red and green and have no connectors, aluminium coated in PTFE. The feedthrough is based on an aluminium bored stub and available in NW/KF 16, -25, -40 and -50.
Flange material Aluminium Flange sizes NW/KF 16, -25, 40 and -50 Maximum voltage 1000V Maximum current in vacuum 1A Vacuum rating Up to 10-6 mbar (10-6 Torr) Number of wires 4, white, black, red and green Wire gauge (AWG) / Number of strands 24 / 7 Wire insulation PTFE Wire length 8″ Operating temperature -20 deg. C to 125 deg. C Applications High voltage or instrumentation
CF feedthroughs available upon enquiry.
VEF-KF16: KF16, A=19mm, B=27mm
VEF-KF25: KF25, A=25mm, B=27mm
VEF-KF40: KF40, A=38mm, B=33mm
VEF-KF50: KF50, A=51mm, B=33mm
