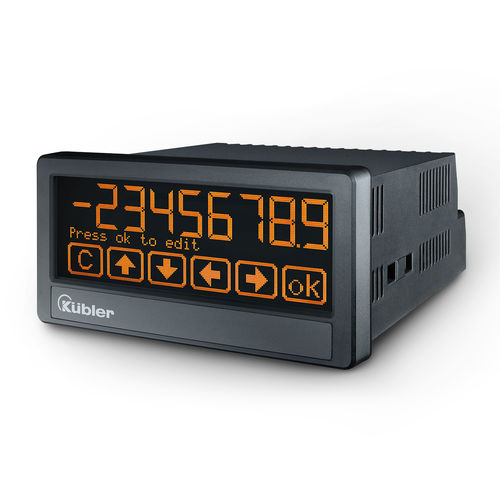

• — Fast 250 kHz / 1 MHz counter input • — 4 switching and/or 2 relay outputs and RS232 interface • — Scalable analog output — • — Dimension • 96 x 48 mm | 92 x 45 mm • — Supply voltage: • 115 V AC • 230 V AC • 18…30 V DC • — Display 8-digit number, LCD Touchscreen LCD touch multifunction preset counters The 571T multifunctional preset counter with max. 250 kHz counting frequency is ideally suited for fast counting tasks. It can also be used as a tachometer, timer, stopwatch or for recording machine cycle numbers or cycle times. 4 limit values, analog output and RS232 interface are available as output variants. Thus, almost all counting, measuring and control tasks can be implemented with this device. Benefits LCD touch multifunction preset counters Properties • — Fast counting input, suitable for our Limes linear measuring system (250 kHz). • — 4 switching outputs as limit values. • — Scalable analog output, resolution 16 bit, +10 to -10 V, 0 to 20 mA or 4 to 20 mA. • — RS232 or RS485 serial interface for reading and writing data. • — Sensor power supply 24 V DC / 150 mA (AC version) or UB — 1 V / max. 250 mA (DC version). • — 96 x 48 mm DIN housing, IP65. • — Touch display with 9-digit display value and plain text programming. • — 2 relay outputs which can be assigned to the limit values.
Технические характеристики
CharacteristicsTechnologyelectronicFunctionmulti-functionMountingwith housingProduct applicationsfor general purposesOther characteristicsprogrammable, adjustable, 8-digitVoltage
Max.: 230 V
Min.: 18 V
