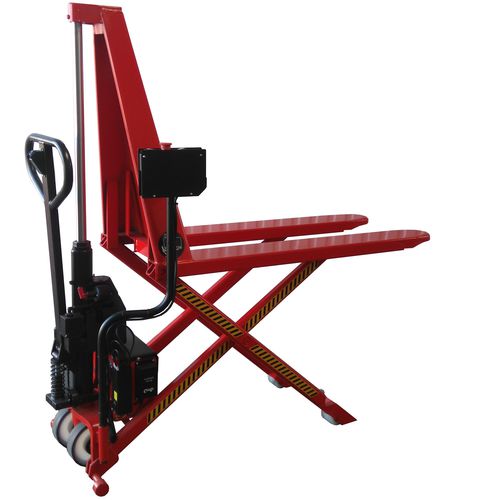

With its small footprint and excellent manoeuvrability, this high lift pallet truck provides a convenient means of moving and raising pallets to a predetermined position automatically or manually. PRODUCT BENEFITS: Heavy duty steel frame, powder coated finish. Manual lift controlled electrically by 1 button mounted on the tiller and manual lowering by lever. Can also be raised manually in case of battery failure. Automatic lift, thanks to a detection cell. The pallet truck lifts and lowers automatically when loads are lifted or set down. When the height control is activated, the sensor adjusts the height of the forks to a suitable and ergonomic working height. Height adjustable from 825 to 1150 mm and swivel range of 400 mm. Adjustable time delay from 0 to 15 seconds. Equipped with an emergency stop key switch. Load level indicator visible and accessible by coloured diodes. Hydraulic cylinder with 1 cylinder. Equipped with clamps that lock the unit to the ground once the load is up. Also has 2 side stabilisers at the rear which, for maximum safety from 400mm lift, come to rest fully on the ground and prevent the unit from rolling. Integrated electronic loader. Delivered assembled, with user manual and CE certificate in French. 100% EUROPEAN PRODUCTION. 2 year warranty (excluding parts subject to wear and tear)
Технические характеристики
CharacteristicsOperationelectricOther characteristicssteel, scissor, high-liftLoad
1,000 kg (2,204.62 lb)
Lifting height
800 mm (31.5 in)
Fork length
1,200 mm (47.24 in)
Fork width
160 mm (6.3 in)
Battery capacity
50 Ah
Weight
160 kg (352.74 lb)
