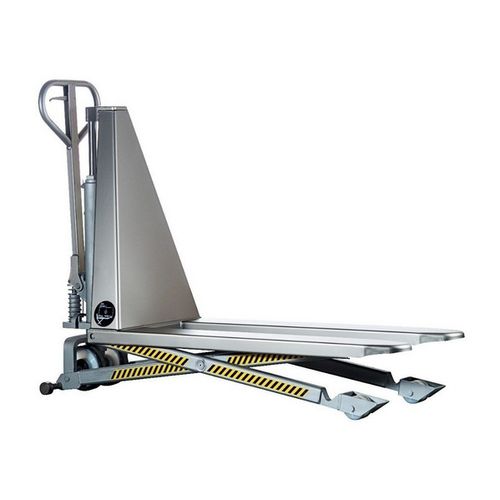

Specially designed for extremely wet and corrosive environments. PRODUCT BENEFITS Frame and pump made of ultra-resistant 304 stainless steel, with a matt micro-beaded finish. Stainless steel 316 available on request. This small and handy high lift pallet truck is a practical way of moving and raising pallets to a predetermined position. The lift is controlled electrically by a button on the tiller and manually by a lever. Can also be raised manually in case of battery failure. Equipped with an emergency stop with key switch. Load level indicator visible and accessible by coloured diodes. Hydraulic cylinder with 1 piston to avoid multiple leaks. Covered fork tips to prevent splashing. Equipped with shoes that lock the unit to the ground once the load is up. Two side stabilisers at the rear for maximum safety at 400mm lift and above, which are fully supported on the ground and prevent the unit from rolling. Integrated electronic loader. Delivered assembled, with user manual and CE certificate in French. 100% EUROPEAN PRODUCTION 2 year warranty (excluding worn parts)
Технические характеристики
CharacteristicsOperationelectricVoltage12 VOther characteristicsinox, scissor, high-lift, for corrosive environments, for wet environmentsLoad
1,000 kg (2,204.62 lb)
Lifting height
Min.: 88 mm (3.5 in)
Max.: 800 mm (31.5 in)
Fork length
1,200 mm (47.24 in)
Fork width
160 mm (6.3 in)
Battery capacity
50 Ah
Speed
0.05 m/s, 0.08 m/s (0.16 ft/s)
Weight
155 kg (341.72 lb)
