Features:
Input Rating
- 0-150 V, 0-60 A, 300W
- 0-150 V, 0-60 A, 300W
Operating Modes
Constant Current, Constant Voltage, Constant Resistance, Constant Power
Constant Current Programming Accuracy ± (% of output + offset)
- Low, 0.6 A, 0.04% + 130 μA
- Medium, 6 A, 0.04% + 2 mA
- High, 60 A, 0.04% + 12 mA
Constant Current Readback Accuracy ± (% of output + offset)
- Low, 0.6 A, 0.04% + 120 μA
- Medium, 6 A, 0.04% + 1.8 mA
- High, 60 A, 0.04% + 9.6 mA

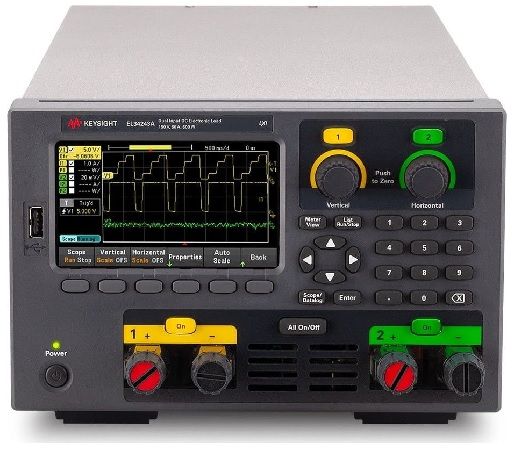

Keysight»s EL30000 Series bench electronic loads consist of three models, all with a built-in data logger. The EL33133A basic performance electronic load offers an economical price, a limited range, and a single 40 A, 150 V, and 250 W input. Two performance models offer additional ranges, the EL34143A single input 60 A, 150 V, 350 W, and EL34243A dual input 60A, 150V, 600 W.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Current | 60 A |
| Type | Module |
| Voltage | 150 V |
| Power | 300 W |
