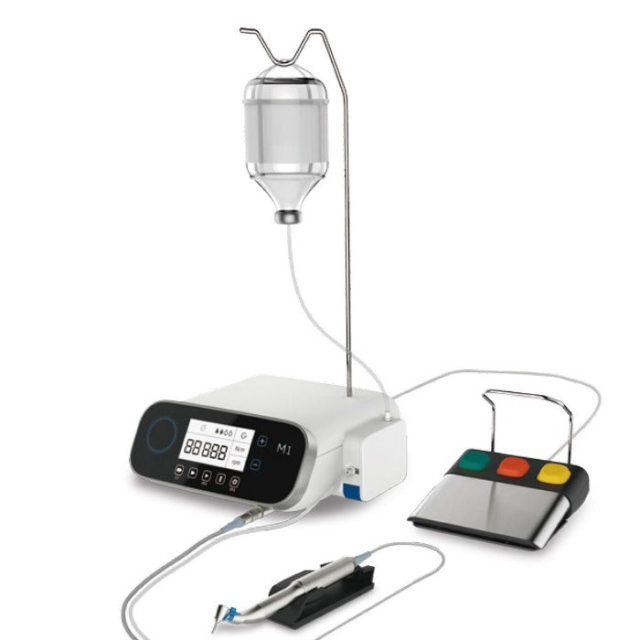

Dental Implant Motor With 20:1 Contra Angle Handpiece. One button operation, ease of use, super safe and convenient. High definition LCD screen with no refection, satisfy for 360°glance. 5 programs for individual adjustment of parameters.
- One button operation,ease of use,super safe and convenient.
- Freely programming for the needs of different users.
- High definition LCD screen with no refection,satisfy for 360°glance.
- Coolant volume at 100% reaches minimum 90ml/min,starts simultaneously with handpiece to ensure sufficient water cooling for bur.
- 5 programs for individual adjustment of parameters.
- Automatic thread Cutter mode.
- When this mode [P5] is activated,the speed in both forward and reverse modes is 20rpm and can no longer be changed.
- When the foot pedal is pressed,the bur rotates inwards untill the torque is reached.
- When the set torque is reached,the bur automatically switches to reverse.
- Disengaging and then re-engaging the foot pedal will switch the device back to forward operation.
- Motor: Excellent quality. Functionaltiy:Super stable rotation and amazing silence.
|
- Waterproof level of foot control: IPX6
- Dimension of foot control(LxWxH): 200x210x85mm
- Cable length of foot control: 2.8m
- Functions:Water volume switch,program conversion,motor rotating direction control,stepless speed control.
|
| Maximum Output Power: | 70W |
| Power: | 110V±10%，50-60HZ 220V±10%, 50-60HZ |
Maximum torque：
| 70N.cm |
| Adjustable motor range： | 300rpm-40000rpm |
| Transmission ratio: | 1:1 , 20:1 |
| Infusion flow: | 90ml/min |
| Net weight of motor: | 110g |
| Length of motor cable: | 1.8m
|
| Coolant pump: | Built-in
|
| Color of main unit body: | White
|
| Material of tubing: | PVC Silicane tubing
|
| Total Length: | 3m
|
| Size of extrusion setion: | External diameter:6mm Internal dismeter:4mm
|
| Size of water spray section: | External diameter:3mm Internal dismeter:1.4mm
|
| Medical equipment: | Sterile,disposable
|
| 1X major control unit | 1X water supply bottle holder |
| 1X foot pedal | 1X motor holder |
1X Power cord
| 1X 20:1 contra angle |
| 1X motor with wire | 1X irrigation tube |
Технические характеристики
| Maximum Output Power: | 70W |
| Power: | 110V±10%，50-60HZ 220V±10%, 50-60HZ |
| Maximum torque： | 70N.cm |
| Adjustable motor range： | 300rpm-40000rpm |
| Transmission ratio: | 1:1 , 20:1 |
| Infusion flow: | 90ml/min |
| Net weight of motor: | 110g |
| Length of motor cable: | 1.8m |
| Coolant pump: | Built-in |
| Color of main unit body: | White |
| Material of tubing: | PVC Silicane tubing |
| Total Length: | 3m |
| Size of extrusion setion: | External diameter:6mm Internal dismeter:4mm |
| Size of water spray section: | External diameter:3mm Internal dismeter:1.4mm |
| Medical equipment: | Sterile,disposable |
