Description

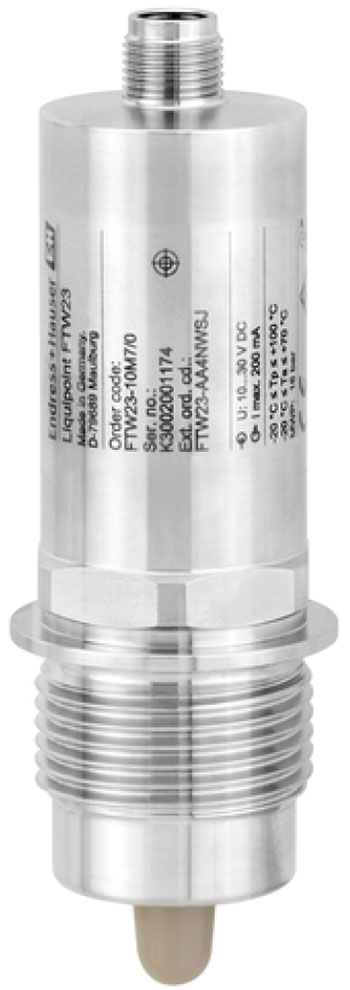

The E+H Liquipoint FTW23 level switch is a point level switch for water-based liquids and, when used with IO-Link, is also suitable for alcohol- and oil-based liquids or powdered products. It is used preferably in storage tanks, mixing vessels and pipes.
Developed and built for the food and beverage industry, the Liquipoint FTW23 meets international hygiene requirements. The Liquipoint FTW23 can be used permanently in process temperatures up to 100°C (212°F) and in cleaning and sterilization processes up to 135°C (275°F) for 60 minutes.
Технические характеристики
Features
- Capacitance point level detection
- Process temperature:
- Standard: -20 to 100°C
- Cleaning:-20 to 135°C for 1h (-4 to 275F for 1h)
- CIP and SIP cleanability ensured
- LED display
- Capacitive Liquid measuring principle
- Thread G1, G1/2, G3/4, M24 process connections
- Wetted parts:
- Sensor: 316L
- Sensor isolation: PEEK
